Brambana - 298.04: ampelometry

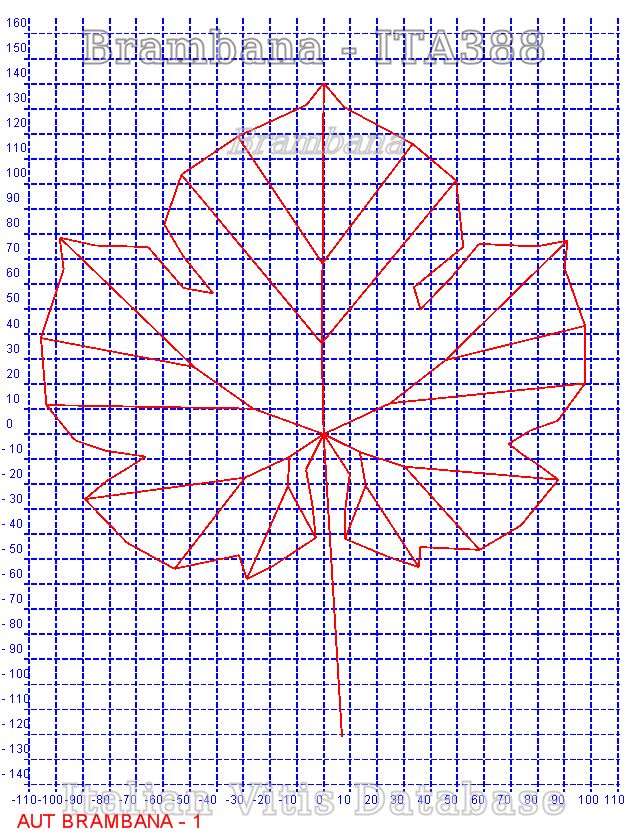

ampelometric leaf
ampelometric leaf
OIV
no descriptors available for Brambana
superampelo
distances
descriptor value standard deviation
Vein N3, length from the petiole sinus to vein N4 15.350 2.020
Vein N3', length from the petiole sinus to vein N4' 15.910 1.680
Length of vein N5 22.660 4.480
Length of vein N5' 23.360 5.660
Length of vein N4 51.210 3.250
Length of vein N4' 51.740 4.580
Distance between petiole point and end of vein N4 64.120 4.700
Distance between petiole point and end of vein N4' 65.130 5.270
Leaf width 193.740 10.370
Leaf length 200.170 11.360
Petiole length 121.480 16.090
Leaf length Including the petiole 261.740 20.360
Distance between the ends of veins N2 and N2' 189.940 12.490
Length of vein N1 140.250 10.050
Distance between the ends of veins N4 and N4' 65.060 10.390
Distance between the ends of veins N3 and N3' 177.640 13.700
Length of vein N2 120.020 6.910
Width of petiole sinus / Distance between points SP and SP' -14.330 6.850
Length of vein N3 89.850 7.190
Length of vein N2' 126.380 4.110
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 69.810 15.030
Length of vein N3' 93.540 6.130
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 78.020 11.390
Distance from the petiole sinus to the lower right sinus 69.700 6.460
Distance from the petiole sinus to the lower left sinus 67.790 4.230
Distance from the petiole sinus to the upper right sinus 61.650 6.280
Distance from the petiole sinus to the upper left sinus 70.080 15.840
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 65.040 3.830
Angle between N2 and N3 measured at the first bifurcation 53.910 2.750
Angle between N1 and N2' measured at the first bifurcation 67.710 4.480
Angle between N3 and N4 at the first fork of N3 62.090 4.810
Angle between N2 and N3' measured at the first bifurcation 56.020 4.000
Angle between N1 and N2 measured at the ends of the veins 49.580 5.270
Angle between N3' and N4' 61.800 5.110
Angle between N2 and N3 measured at the ends of the veins 52.180 6.890
Angle between N1' and N2' measured at the ends of the veins 51.510 3.910
Angle between N3 and N4 measured at the ends of the veins 44.360 5.510
Angle between N2' and N3' measured at the ends of the veins 54.810 5.910
Angle of opening of the petiole sinus measured at SP and at SP' 24.800 16.280
Angle between N3' and N4' measured at the ends of the veins 47.240 4.340
Angle between S and S' with the center in N1 48.410 13.120
Angle between D and D' with the center in N1 107.490 7.310
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 67.320 7.880
Angle between I and I' with the center in N1 49.860 4.020
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 69.190 6.240
rations
descriptor value standard deviation
Multiplication between length and width of the leaf 38790.080 3062.380
Ratio between the length of the petiole OP and the length of the vein N1 0.870 0.110
Ratio between length and width of the leaf 1.040 0.080
Ratio between the distance from the sinus and the length of the vein N2 0.510 0.050
Ratio between the height and the base of the tooth at the end of the vein N4' 0.590 0.070
Ratio between the height and the base of the tooth at the end of the vein N2' 0.710 0.110
Ratio between the height and the base of the tooth at the end of the vein N4 0.610 0.140
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the height and the base of the tooth at the end of the vein N2 0.670 0.110
Ratio between the length of the vein N5' and the length of the vein N1 0.170 0.050
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.000
Ratio between the length of the vein N4' and the length of the vein N1 0.370 0.040
Ratio between the length of the vein N5 and the length of the vein N1 0.160 0.040
Ratio between the length of the vein N3' and the length of the vein N1 0.670 0.080
Ratio between the length of the vein N4 and the length of the vein N1 0.370 0.030
Ratio between the length of the vein N2' and the length of the vein N1 0.900 0.060
Ratio between the length of the vein N3 and the length of the vein N1 0.640 0.080
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.730 0.070
Ratio between the length of the vein N2 and the length of the vein N1 0.860 0.060
Ratio between the distance from the sinus and the length of the vein N2' 0.550 0.110
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.780 0.060
