Gran Rap neri - 303.05: ampelometry

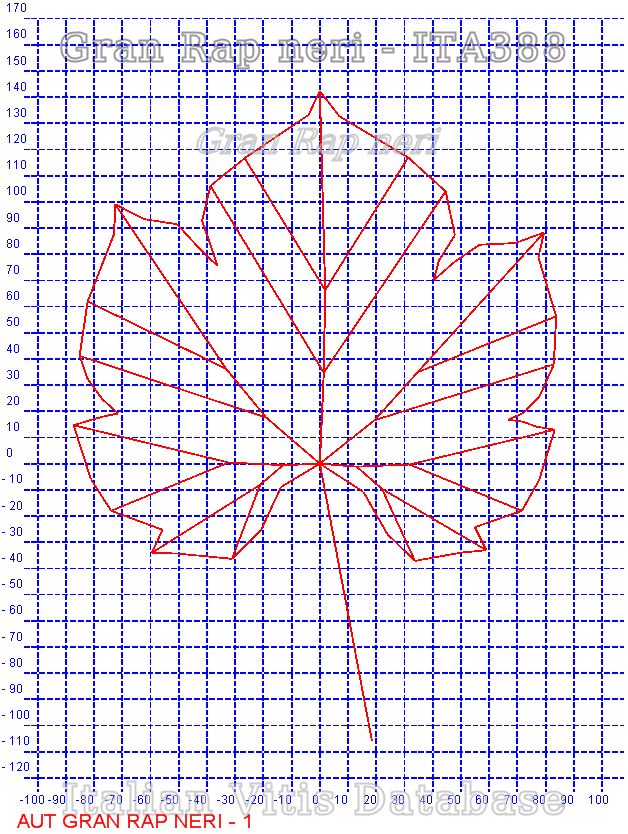

ampelometric leaf
ampelometric leaf
OIV
no descriptors available for Gran Rap neri
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower right sinus 69.250 9.540
Distance from the petiole sinus to the lower left sinus 74.590 9.190
Distance from the petiole sinus to the upper right sinus 81.370 11.520
Distance from the petiole sinus to the upper left sinus 84.130 13.770
Vein N3, length from the petiole sinus to vein N4 13.300 3.340
Vein N3', length from the petiole sinus to vein N4' 13.170 3.630
Length of vein N5 30.090 5.040
Length of vein N5' 30.510 6.010
Length of vein N4 56.370 7.200
Length of vein N4' 58.190 8.550
Distance between petiole point and end of vein N4 68.200 8.980
Distance between petiole point and end of vein N4' 69.550 11.920
Leaf width 171.770 21.690
Leaf length 184.450 26.390
Petiole length 108.020 12.590
Leaf length Including the petiole 250.330 30.530
Distance between the ends of veins N2 and N2' 152.740 24.410
Length of vein N1 142.310 21.780
Distance between the ends of veins N4 and N4' 119.360 21.690
Distance between the ends of veins N3 and N3' 170.950 20.420
Length of vein N2 119.440 14.920
Width of petiole sinus / Distance between points SP and SP' -45.210 11.260
Length of vein N3 84.720 10.490
Length of vein N2' 123.080 16.420
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 56.660 15.090
Length of vein N3' 89.150 12.220
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 49.510 11.330
angles
descriptor value standard deviation
Angle of opening of the petiole sinus measured at SP and at SP' 80.540 17.560
Angle between N3' and N4' measured at the ends of the veins 39.670 4.870
Angle between S and S' with the center in N1 61.020 19.240
Angle between D and D' with the center in N1 96.840 11.320
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 56.650 5.760
Angle between I and I' with the center in N1 58.530 4.900
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 59.350 5.340
Angle between N1 and N2 measured at the first bifurcation 46.970 3.070
Angle between N2 and N3 measured at the first bifurcation 45.990 5.610
Angle between N1 and N2' measured at the first bifurcation 49.110 4.430
Angle between N3 and N4 at the first fork of N3 46.570 4.350
Angle between N2 and N3' measured at the first bifurcation 45.210 4.650
Angle between N1 and N2 measured at the ends of the veins 41.910 6.060
Angle between N3' and N4' 46.130 5.640
Angle between N2 and N3 measured at the ends of the veins 39.190 3.040
Angle between N1' and N2' measured at the ends of the veins 36.080 4.030
Angle between N3 and N4 measured at the ends of the veins 37.960 5.960
Angle between N2' and N3' measured at the ends of the veins 44.800 6.860
rations
descriptor value standard deviation
Multiplication between length and width of the leaf 32121.720 8133.060
Ratio between the length of the petiole OP and the length of the vein N1 0.770 0.110
Ratio between length and width of the leaf 1.070 0.080
Ratio between the distance from the sinus and the length of the vein N2 0.690 0.100
Ratio between the height and the base of the tooth at the end of the vein N4' 0.680 0.140
Ratio between the height and the base of the tooth at the end of the vein N2' 0.820 0.190
Ratio between the height and the base of the tooth at the end of the vein N4 0.710 0.200
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.010 0.000
Ratio between the height and the base of the tooth at the end of the vein N2 0.950 0.430
Ratio between the length of the vein N5' and the length of the vein N1 0.220 0.040
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.010 0.000
Ratio between the length of the vein N4' and the length of the vein N1 0.410 0.040
Ratio between the length of the vein N5 and the length of the vein N1 0.210 0.040
Ratio between the length of the vein N3' and the length of the vein N1 0.630 0.040
Ratio between the length of the vein N4 and the length of the vein N1 0.400 0.050
Ratio between the length of the vein N2' and the length of the vein N1 0.870 0.050
Ratio between the length of the vein N3 and the length of the vein N1 0.600 0.070
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.840 0.050
Ratio between the length of the vein N2 and the length of the vein N1 0.850 0.070
Ratio between the distance from the sinus and the length of the vein N2' 0.690 0.100
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.820 0.060
