Baratuciat - 605: ampelometry

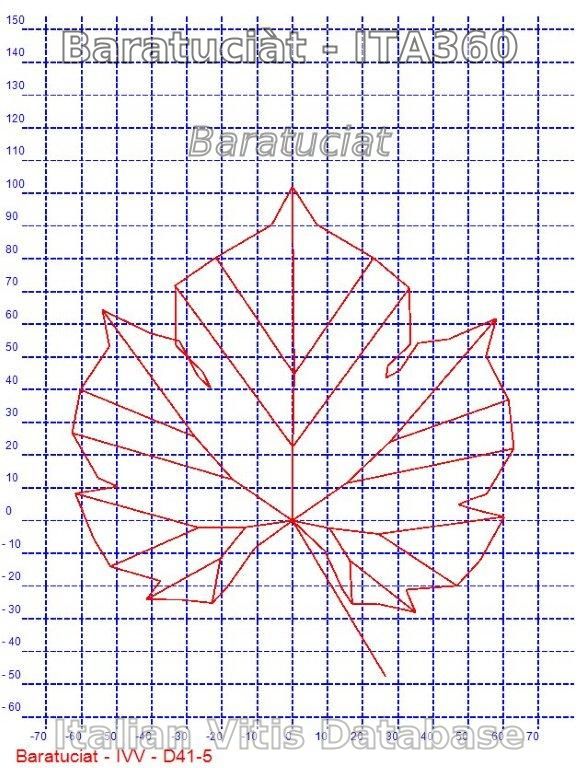

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 102.00 )
602 PDF Mature leaf: length of vein N2 ( 84.80 )
603 PDF Mature leaf: length of vein N3 ( 61.60 )
604 PDF Mature leaf: length of vein N4 ( 46.80 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 49.00 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 49.30 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 53.40 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 47.25 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 52.25 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 43.95 )
611 PDF Mature leaf: length of vein N5 ( 13.80 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 38.00 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -33.10 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 50.900 5.600
Distance from the petiole sinus to the lower right sinus 47.700 4.200
Distance from the petiole sinus to the upper left sinus 46.800 5.800
Distance from the petiole sinus to the upper right sinus 51.200 9.100
Vein N3', length from the petiole sinus to vein N4' 13.500 2.500
Vein N3, length from the petiole sinus to vein N4 10.900 2.200
Length of vein N5' 14.000 3.100
Length of vein N5 13.600 3.800
Length of vein N4' 36.100 3.700
Length of vein N4 35.900 3.900
Distance between petiole point and end of vein N4' 48.300 4.600
Distance between petiole point and end of vein N4 45.300 4.600
Leaf length 132.200 12.600
Leaf width 124.000 10.700
Leaf length Including the petiole 159.700 14.200
Petiole length 57.700 6.300
Length of vein N1 102.000 9.400
Distance between the ends of veins N2 and N2' 112.300 11.000
Distance between the ends of veins N3 and N3' 122.400 10.500
Distance between the ends of veins N4 and N4' 76.900 9.000
Width of petiole sinus / Distance between points SP and SP' -33.100 5.600
Length of vein N2 85.200 5.900
Length of vein N2' 84.400 6.900
Length of vein N3 60.700 5.600
Length of vein N3' 62.500 6.100
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 39.800 8.300
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 36.200 6.000
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 53.100 4.900
Angle between N1 and N2' measured at the first bifurcation 53.700 4.000
Angle between N2 and N3 measured at the first bifurcation 49.500 7.200
Angle between N2 and N3' measured at the first bifurcation 45.000 3.600
Angle between N3 and N4 at the first fork of N3 52.400 4.400
Angle between N3' and N4' 52.100 4.800
Angle between N1 and N2 measured at the ends of the veins 43.100 6.300
Angle between N1' and N2' measured at the ends of the veins 40.200 5.200
Angle between N2 and N3 measured at the ends of the veins 45.700 2.400
Angle between N2' and N3' measured at the ends of the veins 42.200 5.300
Angle between N3 and N4 measured at the ends of the veins 39.700 4.000
Angle between N3' and N4' measured at the ends of the veins 37.800 3.400
Angle of opening of the petiole sinus measured at SP and at SP' 76.700 15.500
Angle between D and D' with the center in N1 94.900 10.200
Angle between S and S' with the center in N1 46.400 12.500
Angle between I and I' with the center in N1 54.600 4.500
rations
descriptor value standard deviation
Ratio between the length of the vein N4 and the length of the vein N1 0.350 0.030
Ratio between the length of the vein N3' and the length of the vein N1 0.600 0.050
Ratio between the length of the vein N3 and the length of the vein N1 0.600 0.070
Ratio between the length of the vein N2' and the length of the vein N1 0.830 0.060
Ratio between the length of the vein N2 and the length of the vein N1 0.840 0.060
Ratio between length and width of the leaf 1.070 0.080
Ratio between the length of the petiole OP and the length of the vein N1 0.570 0.050
Ratio between the distance from the sinus and the length of the vein N2 0.600 0.100
Ratio between the distance from the sinus and the length of the vein N2' 0.560 0.070
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.790 0.050
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.820 0.040
Media of the base of the teeth of the left side 8.230 1.300
Media height of the teeth of the left side 7.650 1.230
Media of the base of the teeth of the right side 8.290 1.390
Media height of the teeth of the right side 7.770 1.390
Ratio between the height and the base of the tooth at the end of the vein N4' 0.840 0.150
Ratio between the height and the base of the tooth at the end of the vein N4 0.840 0.140
Ratio between the height and the base of the tooth at the end of the vein N2' 0.970 0.110
Ratio between the height and the base of the tooth at the end of the vein N2 1.020 0.130
Ratio between the height and the base of the teeth of the left side 0.930 0.090
Ratio between the height and the base of the teeth of the right side 0.950 0.130
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.000
Ratio between the length of the vein N5' and the length of the vein N1 0.140 0.030
Ratio between the length of the vein N5 and the length of the vein N1 0.130 0.030
Ratio between the length of the vein N4' and the length of the vein N1 0.360 0.030
