Barbera bianca - 361: ampelometry

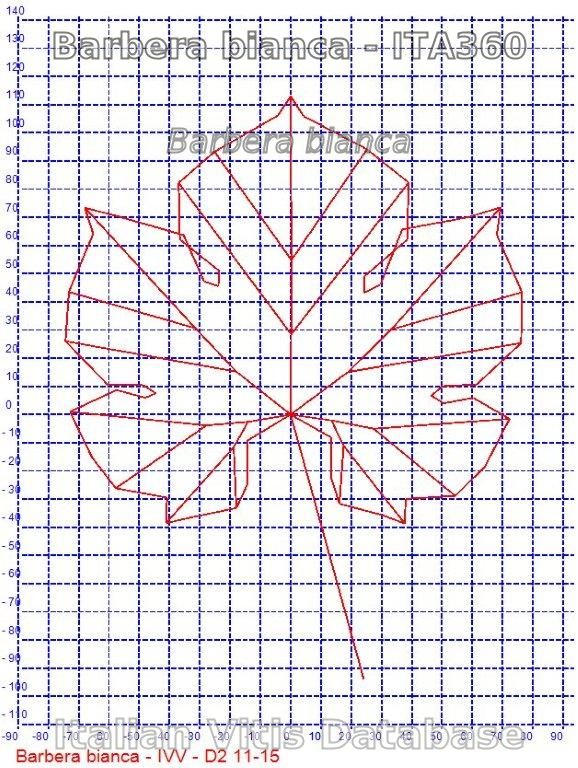

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 113.00 )
602 PDF Mature leaf: length of vein N2 ( 100.85 )
603 PDF Mature leaf: length of vein N3 ( 73.80 )
604 PDF Mature leaf: length of vein N4 ( 56.00 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 50.65 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 46.80 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 51.00 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 48.95 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 56.80 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 47.50 )
611 PDF Mature leaf: length of vein N5 ( 21.45 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 48.35 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -27.80 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 45.700 8.000
Distance from the petiole sinus to the lower right sinus 47.900 8.300
Distance from the petiole sinus to the upper left sinus 51.500 11.300
Distance from the petiole sinus to the upper right sinus 49.800 8.100
Vein N3', length from the petiole sinus to vein N4' 14.500 2.100
Vein N3, length from the petiole sinus to vein N4 13.800 2.900
Length of vein N5' 21.900 2.900
Length of vein N5 21.000 3.000
Length of vein N4' 45.600 4.200
Length of vein N4 44.700 4.800
Distance between petiole point and end of vein N4' 57.100 5.200
Distance between petiole point and end of vein N4 54.900 6.100
Leaf length 154.200 11.400
Leaf width 148.300 13.800
Leaf length Including the petiole 212.100 30.800
Petiole length 99.100 22.300
Length of vein N1 113.000 9.600
Distance between the ends of veins N2 and N2' 137.500 14.400
Distance between the ends of veins N3 and N3' 145.500 15.900
Distance between the ends of veins N4 and N4' 79.100 18.300
Width of petiole sinus / Distance between points SP and SP' -27.800 9.700
Length of vein N2 101.400 11.200
Length of vein N2' 100.300 10.200
Length of vein N3 73.700 8.900
Length of vein N3' 73.900 7.300
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 49.100 9.100
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 47.600 9.300
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 51.400 6.400
Angle between N1 and N2' measured at the first bifurcation 50.600 5.800
Angle between N2 and N3 measured at the first bifurcation 47.400 5.600
Angle between N2 and N3' measured at the first bifurcation 50.500 3.900
Angle between N3 and N4 at the first fork of N3 55.700 4.400
Angle between N3' and N4' 57.900 3.200
Angle between N1 and N2 measured at the ends of the veins 43.500 4.600
Angle between N1' and N2' measured at the ends of the veins 43.000 4.800
Angle between N2 and N3 measured at the ends of the veins 48.500 8.800
Angle between N2' and N3' measured at the ends of the veins 46.500 6.100
Angle between N3 and N4 measured at the ends of the veins 44.600 4.400
Angle between N3' and N4' measured at the ends of the veins 44.000 5.800
Angle of opening of the petiole sinus measured at SP and at SP' 59.300 18.200
Angle between D and D' with the center in N1 102.400 11.000
Angle between S and S' with the center in N1 40.000 15.000
Angle between I and I' with the center in N1 46.400 6.200
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 7.370 1.060
Media height of the teeth of the left side 7.080 0.910
Media of the base of the teeth of the right side 7.240 1.160
Media height of the teeth of the right side 7.320 1.160
Ratio between the height and the base of the tooth at the end of the vein N4' 0.650 0.070
Ratio between the height and the base of the tooth at the end of the vein N4 0.650 0.130
Ratio between the height and the base of the tooth at the end of the vein N2' 0.890 0.150
Ratio between the height and the base of the tooth at the end of the vein N2 0.800 0.130
Ratio between the height and the base of the teeth of the left side 0.970 0.140
Ratio between the height and the base of the teeth of the right side 1.020 0.110
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.000
Ratio between the length of the vein N5' and the length of the vein N1 0.200 0.030
Ratio between the length of the vein N5 and the length of the vein N1 0.190 0.020
Ratio between the length of the vein N4' and the length of the vein N1 0.410 0.040
Ratio between the length of the vein N4 and the length of the vein N1 0.400 0.030
Ratio between the length of the vein N3' and the length of the vein N1 0.650 0.050
Ratio between the length of the vein N3 and the length of the vein N1 0.650 0.060
Ratio between the length of the vein N2' and the length of the vein N1 0.890 0.050
Ratio between the length of the vein N2 and the length of the vein N1 0.900 0.070
Ratio between length and width of the leaf 1.040 0.060
Ratio between the length of the petiole OP and the length of the vein N1 0.870 0.130
Ratio between the distance from the sinus and the length of the vein N2 0.500 0.100
Ratio between the distance from the sinus and the length of the vein N2' 0.520 0.130
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.660 0.130
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.620 0.120
