Timorasso - 362: ampelometry

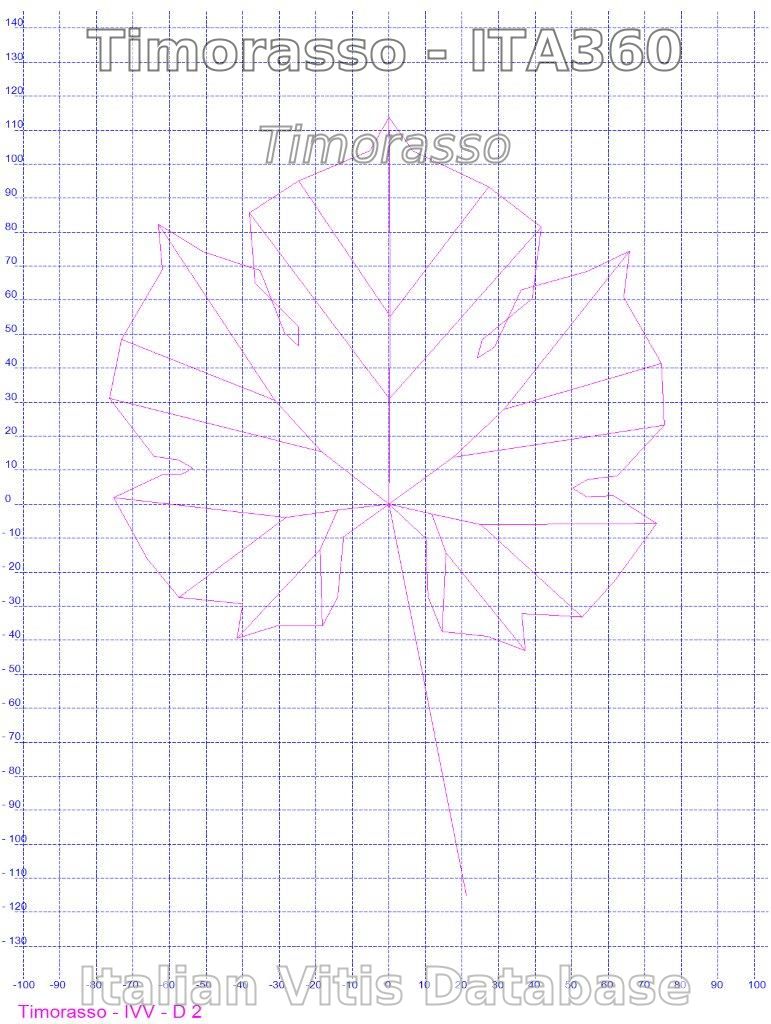

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 113.80 )
602 PDF Mature leaf: length of vein N2 ( 102.45 )
603 PDF Mature leaf: length of vein N3 ( 75.00 )
604 PDF Mature leaf: length of vein N4 ( 58.05 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 51.20 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 53.05 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 51.15 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 49.70 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 58.00 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 52.20 )
611 PDF Mature leaf: length of vein N5 ( 23.30 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 42.20 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -25.00 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 55.000 8.500
Distance from the petiole sinus to the lower right sinus 51.100 5.600
Distance from the petiole sinus to the upper left sinus 52.800 11.600
Distance from the petiole sinus to the upper right sinus 49.600 9.100
Vein N3', length from the petiole sinus to vein N4' 14.200 1.900
Vein N3, length from the petiole sinus to vein N4 12.200 2.900
Length of vein N5' 23.200 3.900
Length of vein N5 23.400 4.600
Length of vein N4' 47.700 5.600
Length of vein N4 48.400 6.800
Distance between petiole point and end of vein N4' 58.300 6.100
Distance between petiole point and end of vein N4 57.800 7.300
Leaf length 159.900 11.900
Leaf width 151.000 11.300
Leaf length Including the petiole 231.600 22.200
Petiole length 117.800 17.000
Length of vein N1 113.800 9.000
Distance between the ends of veins N2 and N2' 130.100 13.500
Distance between the ends of veins N3 and N3' 149.400 12.200
Distance between the ends of veins N4 and N4' 79.600 17.100
Width of petiole sinus / Distance between points SP and SP' -25.000 9.400
Length of vein N2 100.900 7.800
Length of vein N2' 104.000 6.600
Length of vein N3 74.200 8.200
Length of vein N3' 75.800 6.900
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 43.700 14.800
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 40.700 6.700
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 51.900 4.900
Angle between N1 and N2' measured at the first bifurcation 50.400 4.600
Angle between N2 and N3 measured at the first bifurcation 52.000 6.700
Angle between N2 and N3' measured at the first bifurcation 47.400 4.200
Angle between N3 and N4 at the first fork of N3 58.000 6.100
Angle between N3' and N4' 58.000 7.200
Angle between N1 and N2 measured at the ends of the veins 41.700 10.700
Angle between N1' and N2' measured at the ends of the veins 37.500 4.600
Angle between N2 and N3 measured at the ends of the veins 53.000 6.000
Angle between N2' and N3' measured at the ends of the veins 51.400 6.200
Angle between N3 and N4 measured at the ends of the veins 45.000 8.200
Angle between N3' and N4' measured at the ends of the veins 45.100 6.300
Angle of opening of the petiole sinus measured at SP and at SP' 46.900 15.600
Angle between D and D' with the center in N1 105.800 8.900
Angle between S and S' with the center in N1 39.100 10.000
Angle between I and I' with the center in N1 52.300 4.500
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 9.010 1.400
Media height of the teeth of the left side 8.980 1.160
Media of the base of the teeth of the right side 8.710 0.720
Media height of the teeth of the right side 8.840 0.720
Ratio between the height and the base of the tooth at the end of the vein N4' 0.790 0.130
Ratio between the height and the base of the tooth at the end of the vein N4 0.810 0.150
Ratio between the height and the base of the tooth at the end of the vein N2' 1.000 0.150
Ratio between the height and the base of the tooth at the end of the vein N2 0.940 0.100
Ratio between the height and the base of the teeth of the left side 1.010 0.170
Ratio between the height and the base of the teeth of the right side 1.010 0.110
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.000
Ratio between the length of the vein N5' and the length of the vein N1 0.210 0.040
Ratio between the length of the vein N5 and the length of the vein N1 0.210 0.040
Ratio between the length of the vein N4' and the length of the vein N1 0.420 0.040
Ratio between the length of the vein N4 and the length of the vein N1 0.430 0.060
Ratio between the length of the vein N3' and the length of the vein N1 0.650 0.060
Ratio between the length of the vein N3 and the length of the vein N1 0.650 0.060
Ratio between the length of the vein N2' and the length of the vein N1 0.920 0.050
Ratio between the length of the vein N2 and the length of the vein N1 0.890 0.050
Ratio between length and width of the leaf 1.060 0.060
Ratio between the length of the petiole OP and the length of the vein N1 1.040 0.130
Ratio between the distance from the sinus and the length of the vein N2 0.490 0.090
Ratio between the distance from the sinus and the length of the vein N2' 0.510 0.100
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.690 0.080
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.730 0.090
