Malvasia di Candia aromatica (standard) - 1724: ampelometry

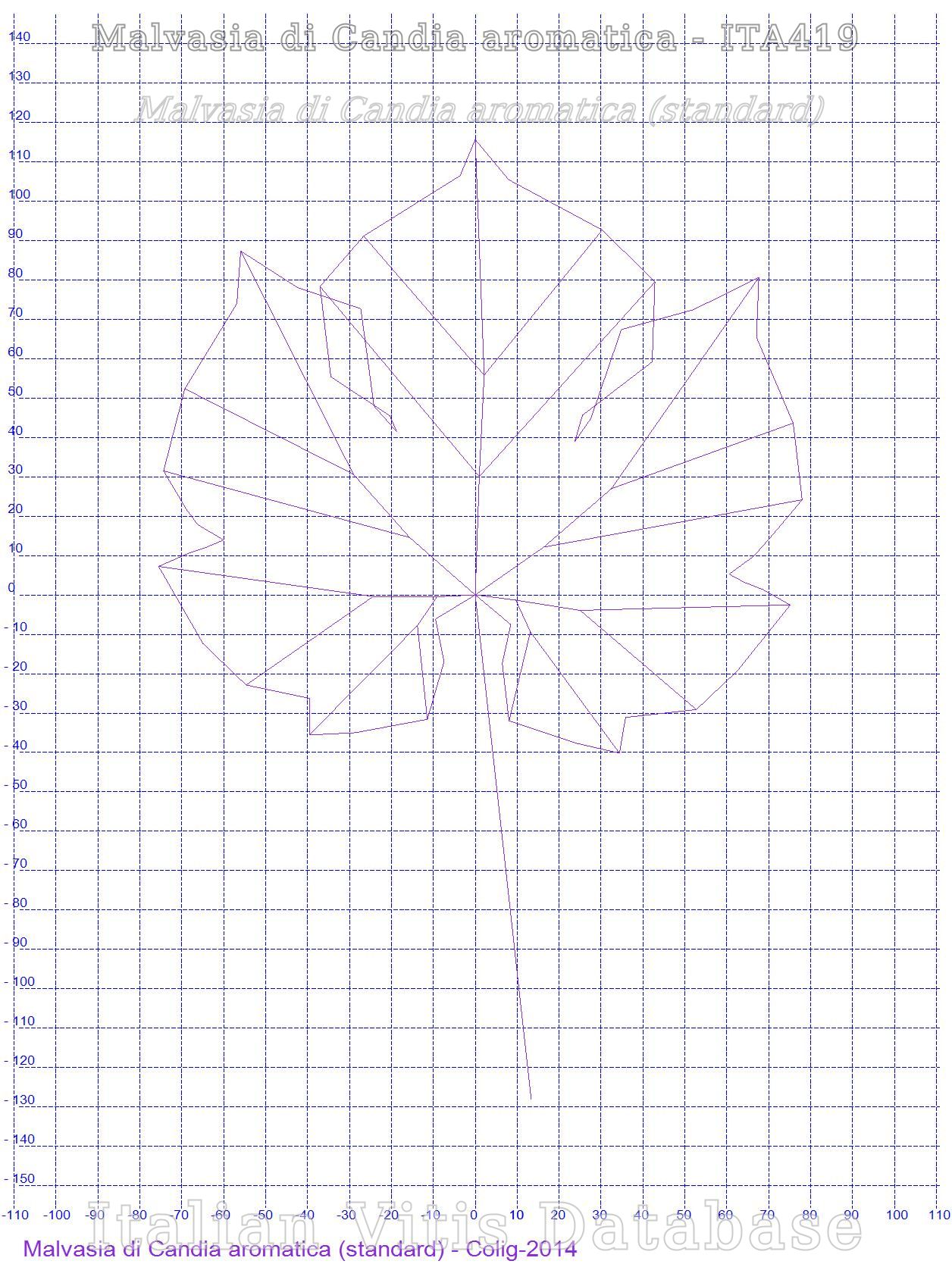

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 3 short (105 mm)
602 PDF Mature leaf: length of vein N2 5 medium (105 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 3 short (50 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 5 medium (60 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 5 medium (46°-55°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 3 small (30°-45°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
612 PDF Mature leaf: length of tooth N2 5 medium (14 mm)
613 PDF Mature leaf: width of tooth N2 7 wide (18 mm)
614 PDF Mature leaf: length of tooth N4 1 very short (6 mm)
615 PDF Mature leaf: width of tooth N4 5 medium (14 mm)
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 3 short (30-45 mm)
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower right sinus 61.200 7.500
Distance from the petiole sinus to the lower left sinus 61.800 5.700
Distance from the petiole sinus to the upper right sinus 45.800 6.300
Distance from the petiole sinus to the upper left sinus 45.500 6.700
Vein N3, length from the petiole sinus to vein N4 9.900 1.800
Vein N3', length from the petiole sinus to vein N4' 9.100 2.200
Length of vein N5 23.800 5.100
Length of vein N5' 24.200 4.200
Length of vein N4 46.300 5.200
Length of vein N4' 46.600 6.800
Distance between petiole point and end of vein N4 53.100 5.600
Distance between petiole point and end of vein N4' 53.300 6.500
Leaf width 151.500 11.200
Leaf length 156.600 11.700
Petiole length 129.200 11.900
Leaf length Including the petiole 244.800 13.200
Distance between the ends of veins N2 and N2' 124.000 19.900
Length of vein N1 115.600 8.700
Distance between the ends of veins N4 and N4' 74.400 8.600
Distance between the ends of veins N3 and N3' 151.300 10.600
Length of vein N2 106.400 5.000
Width of petiole sinus / Distance between points SP and SP' -14.100 2.500
Length of vein N3 75.700 5.900
Length of vein N2' 104.200 7.300
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 40.000 15.100
Length of vein N3' 76.100 7.700
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 30.600 11.000
angles
descriptor value standard deviation
Angle between N2 and N3 measured at the ends of the veins 52.200 6.100
Angle between N1' and N2' measured at the ends of the veins 32.600 6.200
Angle between N3 and N4 measured at the ends of the veins 47.400 2.800
Angle between N2' and N3' measured at the ends of the veins 51.900 3.400
Angle of opening of the petiole sinus measured at SP and at SP' 45.300 11.300
Angle between N3' and N4' measured at the ends of the veins 47.300 3.600
Angle between S and S' with the center in N1 31.700 6.900
Angle between D and D' with the center in N1 95.100 6.500
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 74.400 5.800
Angle between I and I' with the center in N1 59.600 5.800
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 75.700 7.400
Angle between N1 and N2 measured at the first bifurcation 51.400 4.600
Angle between N2 and N3 measured at the first bifurcation 44.300 6.900
Angle between N1 and N2' measured at the first bifurcation 48.700 2.700
Angle between N3 and N4 at the first fork of N3 57.600 9.800
Angle between N2 and N3' measured at the first bifurcation 46.200 3.800
Angle between N1 and N2 measured at the ends of the veins 40.000 8.700
Angle between N3' and N4' 58.100 9.400
rations
descriptor value standard deviation
Multiplication between length and width of the leaf 23790.000 3119.000
Ratio between the length of the petiole OP and the length of the vein N1 1.124 0.144
Ratio between length and width of the leaf 1.036 0.068
Ratio between the distance from the sinus and the length of the vein N2 0.431 0.061
Media of the base of the teeth of the left side 6.612 1.721
Media of the base of the teeth of the right side 6.152 1.947
Media height of the teeth of the left side 5.272 1.055
Ratio between the height and the base of the tooth at the end of the vein N4' 0.513 0.088
Media height of the teeth of the right side 4.562 1.055
Ratio between the height and the base of the tooth at the end of the vein N2' 0.881 0.186
Ratio between the height and the base of the tooth at the end of the vein N4 0.520 0.063
Ratio between the height and the base of the teeth of the left side 0.839 0.254
Ratio between the height and the base of the tooth at the end of the vein N2 0.883 0.136
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.016 0.001
Ratio between the height and the base of the teeth of the right side 0.777 0.288
Ratio between the length of the vein N5' and the length of the vein N1 0.210 0.038
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.016 0.002
Ratio between the length of the vein N4' and the length of the vein N1 0.404 0.056
Ratio between the length of the vein N5 and the length of the vein N1 0.206 0.044
Ratio between the length of the vein N3' and the length of the vein N1 0.658 0.071
Ratio between the length of the vein N4 and the length of the vein N1 0.402 0.051
Ratio between the length of the vein N2' and the length of the vein N1 0.903 0.059
Ratio between the length of the vein N3 and the length of the vein N1 0.657 0.059
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.815 0.060
Ratio between the length of the vein N2 and the length of the vein N1 0.922 0.036
Ratio between the distance from the sinus and the length of the vein N2' 0.437 0.058
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.808 0.062
