Pecorino - AB7: ampelometry

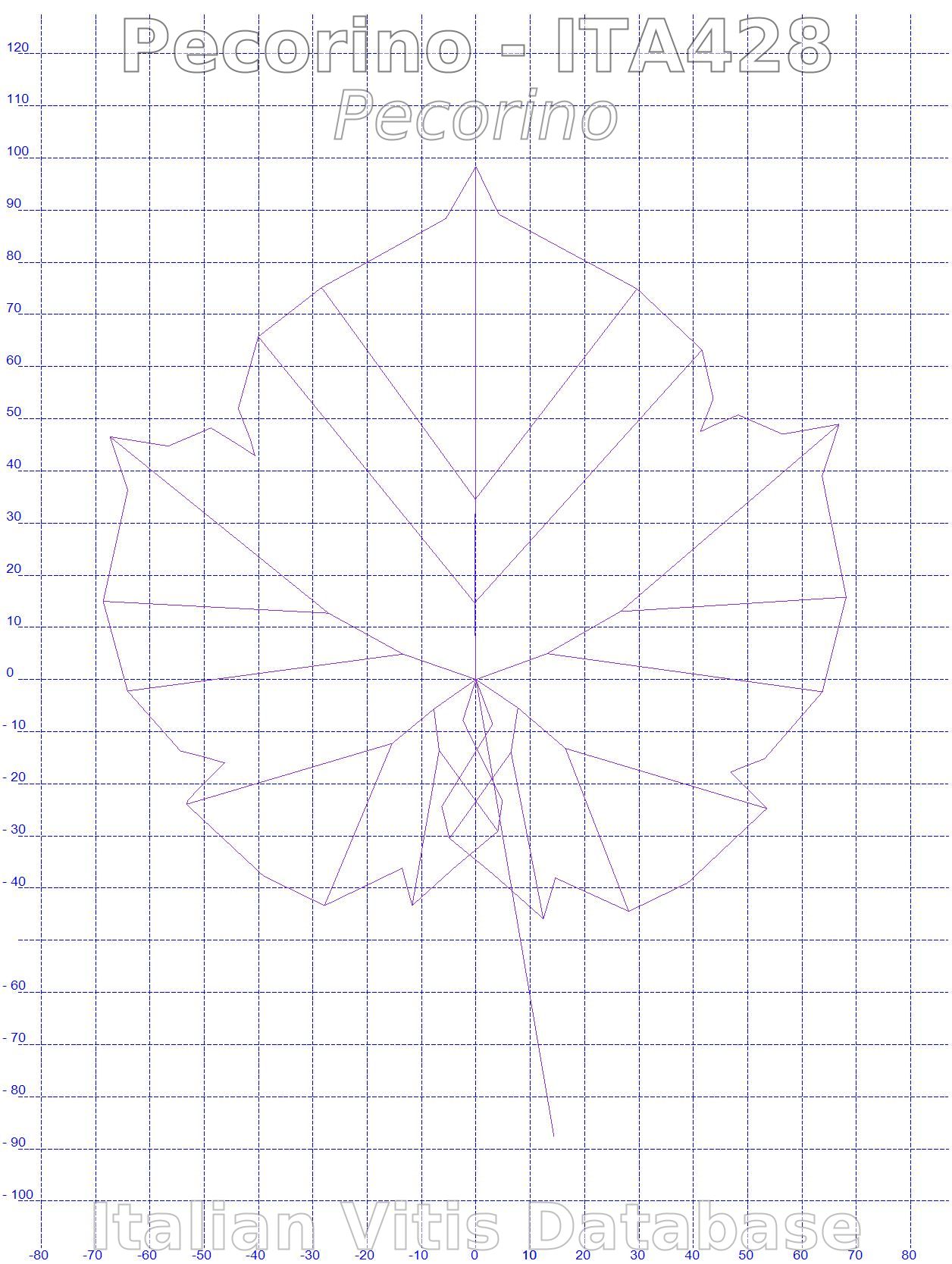

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 3 short (105 mm)
602 PDF Mature leaf: length of vein N2 3 short (85 mm)
603 PDF Mature leaf: length of vein N3 3 short (55 mm)
604 PDF Mature leaf: length of vein N4 7 long (45 mm)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 5 medium (70 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 3 short (45 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 7 large (56°-70°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
612 PDF Mature leaf: length of tooth N2 3 short (10 mm)
613 PDF Mature leaf: width of tooth N2 3 narrow (10 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 3 narrow (10 mm)
superampelo
distances
descriptor value standard deviation
Vein N3, length from the petiole sinus to vein N4 9.500 3.240
Length of vein N5' 19.200 4.174
Distance from the petiole sinus to the upper right sinus 63.070 4.643
Vein N3', length from the petiole sinus to vein N4' 9.790 1.981
Length of vein N4 41.300 4.597
Distance between petiole point and end of vein N4' 45.350 4.791
Length of vein N5 20.530 3.948
Length of vein N4' 38.370 4.928
Leaf width 134.390 12.045
Leaf length Including the petiole 187.740 23.458
Distance between petiole point and end of vein N4 48.250 5.921
Leaf length 145.970 11.484
Distance between the ends of veins N2 and N2' 134.350 12.029
Distance between the ends of veins N3 and N3' 107.290 15.406
Petiole length 89.370 19.765
Length of vein N1 98.360 6.824
Length of vein N2 83.030 6.548
Length of vein N2' 82.140 7.249
Distance between the ends of veins N4 and N4' 24.610 12.402
Width of petiole sinus / Distance between points SP and SP' -12.830 5.685
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 45.620 5.754
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 48.510 8.331
Length of vein N3 59.710 6.175
Length of vein N3' 59.190 8.090
Height of the tooth on the end of N2 8.980 2.000
Altezza del dente posto all’estremità di N2' 9.220 2.311
Height of the tooth on the end of N4 8.410 2.016
Height of the tooth on the end of N4' 7.660 1.742
Base of the tooth located at the end of N4 11.510 2.289
Base of the tooth located at the end of N2' 11.410 3.127
Base of the tooth located at the end of N4' 10.180 1.874
Distance from the petiole sinus to the lower right sinus 50.620 4.787
Distance from the petiole sinus to the upper left sinus 59.330 7.719
Base of the tooth located at the end of N2 10.940 2.447
Distance from the petiole sinus to the lower left sinus 49.490 6.662
angles
descriptor value standard deviation
Angle between N2 and N3 measured at the first bifurcation 56.710 5.636
Angle between N2 and N3' measured at the first bifurcation 55.770 7.509
Angle between N1 and N2 measured at the first bifurcation 70.460 6.364
Angle between N1 and N2' measured at the first bifurcation 68.790 4.072
Angle between N1 and N2 measured at the ends of the veins 53.870 3.743
Angle between N1' and N2' measured at the ends of the veins 55.090 4.905
Angle between N3 and N4 at the first fork of N3 55.560 5.008
Angle between N3' and N4' 57.790 7.859
Angle between N3 and N4 measured at the ends of the veins 50.130 3.723
Angle between N3' and N4' measured at the ends of the veins 50.500 6.069
Angle between N2 and N3 measured at the ends of the veins 61.130 7.956
Angle between N2' and N3' measured at the ends of the veins 59.150 7.177
Angle between S and S' with the center in N1 75.350 4.722
Angle between I and I' with the center in N1 44.240 6.505
Angle of opening of the petiole sinus measured at SP and at SP' 29.070 14.095
Angle between D and D' with the center in N1 100.710 5.064
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 74.490 6.776
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 73.640 7.448
Sum of the angles alpha' + beta' + gamma' 182.380 13.020
Sum of the angles alpha + beta + gamma 182.730 11.354
Sum of the angles alpha' + beta' 124.570 9.081
Sum of the angles alpha + beta 127.180 8.445
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 13.179 2.502
Media height of the teeth of the left side 14.459 2.915
Ratio between the height and the base of the tooth at the end of the vein N4' 0.754 0.111
Ratio between the height and the base of the tooth at the end of the vein N4 0.731 0.097
Media of the base of the teeth of the right side 12.928 1.575
Media height of the teeth of the right side 14.437 2.898
Ratio between the height and the base of the teeth of the left side 1.105 0.183
Ratio between the height and the base of the teeth of the right side 1.117 0.192
Ratio between the height and the base of the tooth at the end of the vein N2' 0.815 0.055
Ratio between the height and the base of the tooth at the end of the vein N2 0.839 0.186
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.003
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.002
Ratio between the length of the vein N5' and the length of the vein N1 0.195 0.038
Ratio between the length of the vein N5 and the length of the vein N1 0.209 0.036
Ratio between the length of the vein N3' and the length of the vein N1 0.600 0.054
Ratio between the length of the vein N3 and the length of the vein N1 0.608 0.061
Ratio between the length of the vein N4' and the length of the vein N1 0.390 0.043
Ratio between the length of the vein N4 and the length of the vein N1 0.421 0.047
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.837 0.019
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.849 0.030
Ratio between the length of the vein N2' and the length of the vein N1 0.835 0.036
Ratio between the length of the vein N2 and the length of the vein N1 0.846 0.064
Ratio between the length of the petiole OP and the length of the vein N1 0.908 0.174
Ratio between length and width of the leaf 1.089 0.069
Ratio between the distance from the sinus and the length of the vein N2' 0.722 0.065
Ratio between the distance from the sinus and the length of the vein N2 0.763 0.067
Multiplication between length and width of the leaf 19705.060 3044.507
