Scannapecora - VG7: ampelometry

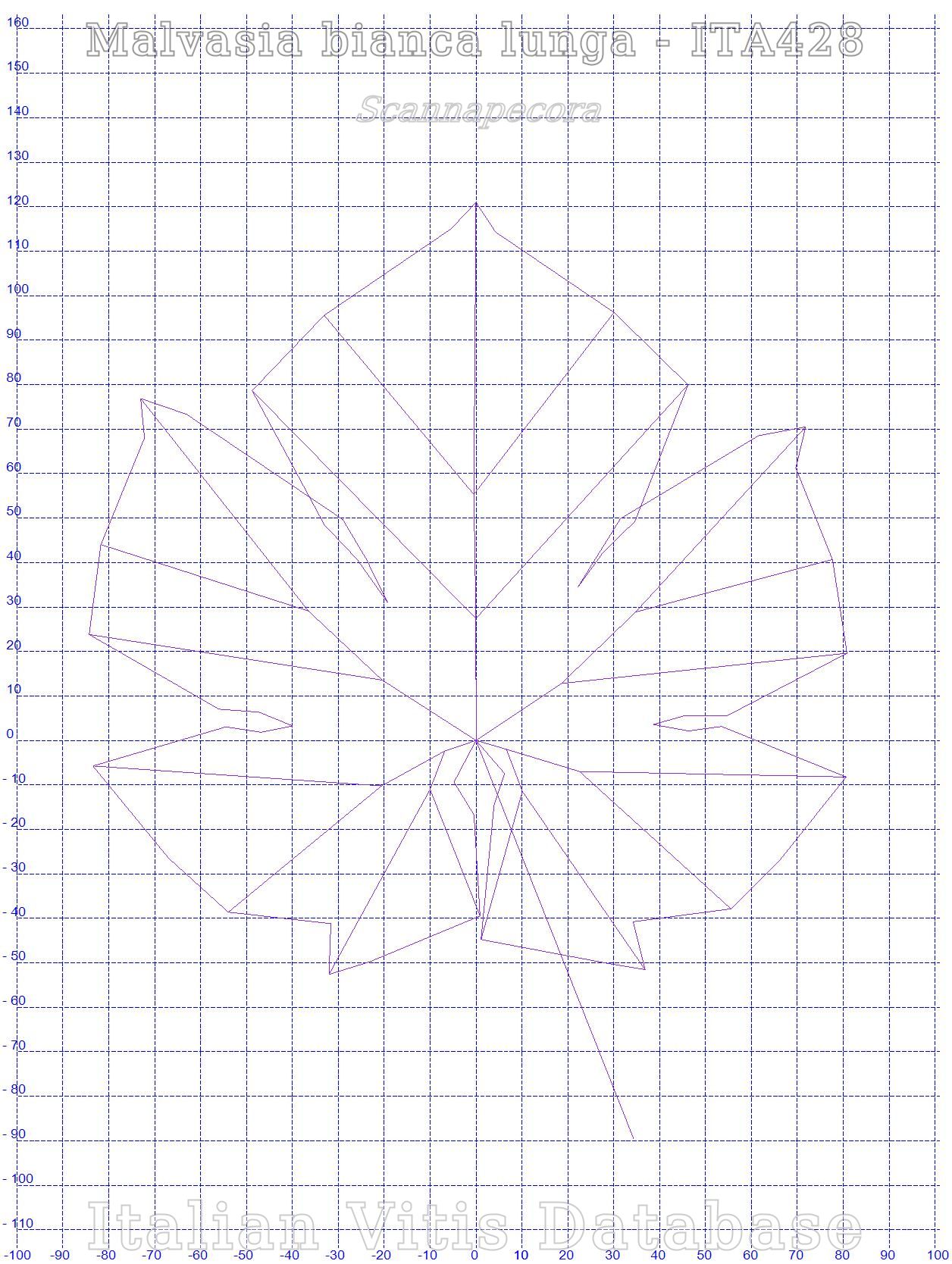

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 5 medium (135 mm)
602 PDF Mature leaf: length of vein N2 5 medium (105 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 1 very short (30 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 3 short (45 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 5 medium (46°-55°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 5 medium (46°-55°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
612 PDF Mature leaf: length of tooth N2 3 short (10 mm)
613 PDF Mature leaf: width of tooth N2 3 narrow (10 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 3 narrow (10 mm)
superampelo
distances
descriptor value standard deviation
Base of the tooth located at the end of N4' 12.540 3.212
Base of the tooth located at the end of N2 11.430 3.219
Distance from the petiole sinus to the lower left sinus 40.550 7.401
Base of the tooth located at the end of N4 11.110 2.146
Base of the tooth located at the end of N2' 10.760 2.658
Distance from the petiole sinus to the upper right sinus 41.000 5.980
Vein N3', length from the petiole sinus to vein N4' 7.320 3.203
Distance from the petiole sinus to the lower right sinus 38.900 4.633
Distance from the petiole sinus to the upper left sinus 36.830 8.226
Length of vein N5 34.900 5.254
Length of vein N4' 57.460 10.790
Vein N3, length from the petiole sinus to vein N4 6.940 3.116
Length of vein N5' 31.230 9.710
Distance between petiole point and end of vein N4 63.480 8.112
Leaf length 176.720 25.393
Length of vein N4 58.160 7.623
Distance between petiole point and end of vein N4' 63.020 10.147
Petiole length 97.360 18.717
Length of vein N1 120.990 17.758
Leaf width 166.530 25.892
Leaf length Including the petiole 218.350 35.748
Distance between the ends of veins N4 and N4' 69.320 10.744
Width of petiole sinus / Distance between points SP and SP' -7.710 3.755
Distance between the ends of veins N2 and N2' 147.180 19.263
Distance between the ends of veins N3 and N3' 165.250 24.023
Length of vein N3 81.400 11.365
Length of vein N3' 85.010 14.111
Length of vein N2 101.950 13.670
Length of vein N2' 107.275 15.981
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 49.890 13.065
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 45.580 20.514
Height of the tooth on the end of N4 8.530 1.801
Height of the tooth on the end of N4' 8.860 1.441
Height of the tooth on the end of N2 8.820 2.190
Altezza del dente posto all’estremità di N2' 8.520 2.424
angles
descriptor value standard deviation
Sum of the angles alpha' + beta' 110.610 9.557
Sum of the angles alpha + beta 106.280 8.026
Sum of the angles alpha' + beta' + gamma' 154.860 17.396
Sum of the angles alpha + beta + gamma 158.590 12.542
Angle between N1 and N2 measured at the first bifurcation 55.650 4.066
Angle between N1 and N2' measured at the first bifurcation 56.110 6.365
Angle between N3 and N4 at the first fork of N3 52.310 6.063
Angle between N3' and N4' 44.250 17.154
Angle between N2 and N3 measured at the first bifurcation 50.630 5.829
Angle between N2 and N3' measured at the first bifurcation 54.510 8.453
Angle between N2 and N3 measured at the ends of the veins 49.720 7.995
Angle between N2' and N3' measured at the ends of the veins 50.720 8.585
Angle between N1 and N2 measured at the ends of the veins 46.300 9.218
Angle between N1' and N2' measured at the ends of the veins 43.420 8.670
Angle of opening of the petiole sinus measured at SP and at SP' 24.070 17.823
Angle between D and D' with the center in N1 98.380 11.223
Angle between N3 and N4 measured at the ends of the veins 48.350 4.137
Angle between N3' and N4' measured at the ends of the veins 53.470 10.339
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 82.180 9.543
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 85.570 12.111
Angle between S and S' with the center in N1 27.460 8.188
Angle between I and I' with the center in N1 37.410 6.262
rations
descriptor value standard deviation
Ratio between the height and the base of the tooth at the end of the vein N4' 0.726 0.119
Ratio between the height and the base of the tooth at the end of the vein N4 0.776 0.124
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.026 0.005
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.024 0.004
Ratio between the height and the base of the tooth at the end of the vein N2' 0.793 0.132
Ratio between the height and the base of the tooth at the end of the vein N2 0.791 0.143
Ratio between the length of the vein N4' and the length of the vein N1 0.479 0.082
Ratio between the length of the vein N4 and the length of the vein N1 0.484 0.050
Ratio between the length of the vein N5' and the length of the vein N1 0.263 0.083
Ratio between the length of the vein N5 and the length of the vein N1 0.290 0.037
Ratio between the length of the vein N2' and the length of the vein N1 0.889 0.075
Ratio between the length of the vein N2 and the length of the vein N1 0.850 0.090
Ratio between the length of the vein N3' and the length of the vein N1 0.704 0.072
Ratio between the length of the vein N3 and the length of the vein N1 0.679 0.086
Ratio between the distance from the sinus and the length of the vein N2' 0.351 0.097
Ratio between the distance from the sinus and the length of the vein N2 0.404 0.052
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.482 0.082
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.480 0.042
Multiplication between length and width of the leaf 29991.340 9324.142
Ratio between the length of the petiole OP and the length of the vein N1 0.802 0.058
Ratio between length and width of the leaf 1.063 0.049
