Nigrut - 497.05: ampelometry

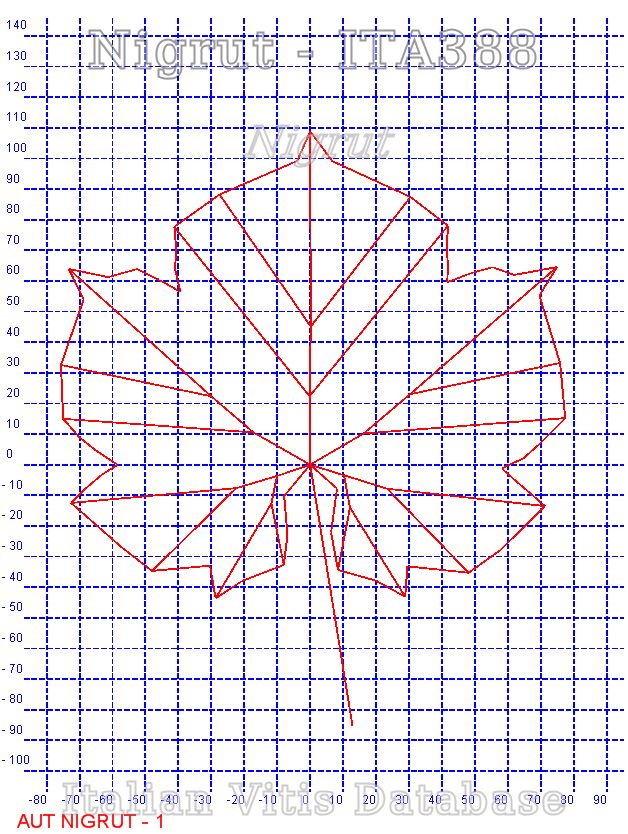

ampelometric leaf
ampelometric leaf
OIV
no descriptors available for Nigrut
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower right sinus 58.710 4.910
Distance from the petiole sinus to the lower left sinus 58.700 8.460
Distance from the petiole sinus to the upper right sinus 73.260 6.190
Distance from the petiole sinus to the upper left sinus 68.940 7.060
Vein N3, length from the petiole sinus to vein N4 10.940 1.620
Vein N3', length from the petiole sinus to vein N4' 10.840 2.200
Length of vein N5 20.860 4.420
Length of vein N5' 20.760 2.470
Length of vein N4 44.400 6.510
Length of vein N4' 44.330 5.600
Distance between petiole point and end of vein N4 52.420 6.820
Distance between petiole point and end of vein N4' 52.530 6.820
Leaf width 154.360 9.800
Leaf length 156.410 11.390
Petiole length 86.720 18.330
Leaf length Including the petiole 195.580 24.850
Distance between the ends of veins N2 and N2' 149.190 12.300
Length of vein N1 108.830 9.020
Distance between the ends of veins N4 and N4' 58.270 12.040
Distance between the ends of veins N3 and N3' 144.440 13.070
Length of vein N2 100.030 6.780
Width of petiole sinus / Distance between points SP and SP' -14.070 4.300
Length of vein N3 73.030 7.110
Length of vein N2' 97.610 7.250
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 50.620 12.320
Length of vein N3' 74.190 8.250
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 52.030 7.990
angles
descriptor value standard deviation
Angle between N3 and N4 at the first fork of N3 62.090 6.540
Angle between N2 and N3' measured at the first bifurcation 51.170 4.770
Angle between N1 and N2 measured at the ends of the veins 49.180 9.110
Angle between N3' and N4' 60.890 5.790
Angle between N2 and N3 measured at the ends of the veins 51.440 5.350
Angle between N1' and N2' measured at the ends of the veins 48.920 5.060
Angle between N3 and N4 measured at the ends of the veins 45.690 5.540
Angle between N2' and N3' measured at the ends of the veins 51.000 5.900
Angle of opening of the petiole sinus measured at SP and at SP' 33.780 12.250
Angle between N3' and N4' measured at the ends of the veins 46.600 8.900
Angle between S and S' with the center in N1 77.930 12.100
Angle between D and D' with the center in N1 107.470 10.910
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 65.370 7.560
Angle between I and I' with the center in N1 56.410 7.050
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 66.170 9.850
Angle between N1 and N2 measured at the first bifurcation 58.190 6.030
Angle between N2 and N3 measured at the first bifurcation 50.560 5.530
Angle between N1 and N2' measured at the first bifurcation 57.790 3.850
rations
descriptor value standard deviation
Multiplication between length and width of the leaf 24218.470 3013.410
Ratio between the length of the petiole OP and the length of the vein N1 0.790 0.140
Ratio between length and width of the leaf 1.010 0.050
Ratio between the distance from the sinus and the length of the vein N2 0.730 0.060
Ratio between the height and the base of the tooth at the end of the vein N4' 0.800 0.120
Ratio between the height and the base of the tooth at the end of the vein N2' 0.980 0.230
Ratio between the height and the base of the tooth at the end of the vein N4 0.770 0.140
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the height and the base of the tooth at the end of the vein N2 1.030 0.260
Ratio between the length of the vein N5' and the length of the vein N1 0.190 0.020
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.010 0.000
Ratio between the length of the vein N4' and the length of the vein N1 0.410 0.050
Ratio between the length of the vein N5 and the length of the vein N1 0.190 0.050
Ratio between the length of the vein N3' and the length of the vein N1 0.680 0.100
Ratio between the length of the vein N4 and the length of the vein N1 0.410 0.070
Ratio between the length of the vein N2' and the length of the vein N1 0.900 0.080
Ratio between the length of the vein N3 and the length of the vein N1 0.670 0.070
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.790 0.070
Ratio between the length of the vein N2 and the length of the vein N1 0.920 0.050
Ratio between the distance from the sinus and the length of the vein N2' 0.710 0.060
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.810 0.030
