Sbulzina - 472.05: ampelometry

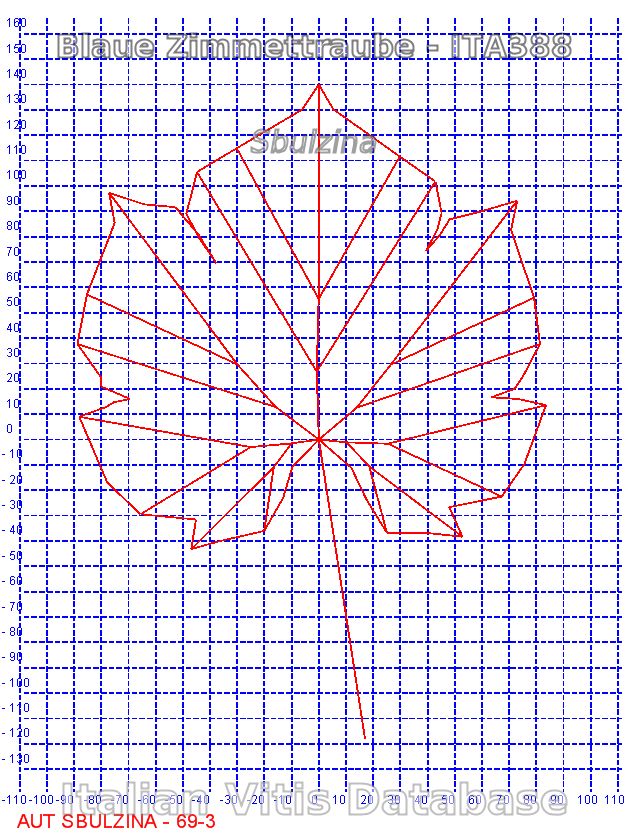

ampelometric leaf
ampelometric leaf
OIV
no descriptors available for Sbulzina
superampelo
distances
descriptor value standard deviation
Distance between the ends of veins N4 and N4' 100.260 22.000
Distance between the ends of veins N3 and N3' 172.230 15.570
Length of vein N2 119.410 13.090
Width of petiole sinus / Distance between points SP and SP' -31.220 13.060
Length of vein N3 85.370 8.870
Length of vein N2' 124.500 12.080
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 47.150 7.080
Length of vein N3' 88.830 8.270
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 50.290 10.940
Distance from the petiole sinus to the lower right sinus 66.190 7.040
Distance from the petiole sinus to the lower left sinus 71.330 10.540
Distance from the petiole sinus to the upper right sinus 84.580 18.010
Distance from the petiole sinus to the upper left sinus 79.250 13.090
Vein N3, length from the petiole sinus to vein N4 10.290 2.060
Vein N3', length from the petiole sinus to vein N4' 10.190 2.620
Length of vein N5 27.460 4.770
Length of vein N5' 25.750 5.740
Length of vein N4 57.920 4.470
Length of vein N4' 56.490 7.180
Distance between petiole point and end of vein N4 66.590 5.930
Distance between petiole point and end of vein N4' 64.670 8.630
Leaf width 171.670 15.820
Leaf length 185.070 19.160
Petiole length 119.910 20.710
Leaf length Including the petiole 259.900 28.720
Distance between the ends of veins N2 and N2' 150.650 18.450
Length of vein N1 140.010 15.610
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 49.050 4.470
Angle between N2 and N3 measured at the first bifurcation 49.460 4.100
Angle between N1 and N2' measured at the first bifurcation 49.260 6.160
Angle between N3 and N4 at the first fork of N3 46.620 7.170
Angle between N2 and N3' measured at the first bifurcation 47.050 4.500
Angle between N1 and N2 measured at the ends of the veins 37.880 4.410
Angle between N3' and N4' 49.860 3.740
Angle between N2 and N3 measured at the ends of the veins 43.390 5.980
Angle between N1' and N2' measured at the ends of the veins 38.120 4.570
Angle between N3 and N4 measured at the ends of the veins 45.230 6.480
Angle between N2' and N3' measured at the ends of the veins 45.830 6.770
Angle of opening of the petiole sinus measured at SP and at SP' 66.460 29.950
Angle between N3' and N4' measured at the ends of the veins 49.030 8.180
Angle between S and S' with the center in N1 60.300 13.440
Angle between D and D' with the center in N1 101.740 9.230
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 64.550 7.530
Angle between I and I' with the center in N1 56.610 5.510
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 66.590 9.710
rations
descriptor value standard deviation
Multiplication between length and width of the leaf 32001.460 5559.640
Ratio between the length of the petiole OP and the length of the vein N1 0.860 0.160
Ratio between length and width of the leaf 1.080 0.060
Ratio between the distance from the sinus and the length of the vein N2 0.700 0.100
Ratio between the height and the base of the tooth at the end of the vein N4' 0.770 0.120
Ratio between the height and the base of the tooth at the end of the vein N2' 0.830 0.160
Ratio between the height and the base of the tooth at the end of the vein N4 0.850 0.130
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.010 0.000
Ratio between the height and the base of the tooth at the end of the vein N2 0.820 0.160
Ratio between the length of the vein N5' and the length of the vein N1 0.190 0.040
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.010 0.000
Ratio between the length of the vein N4' and the length of the vein N1 0.410 0.060
Ratio between the length of the vein N5 and the length of the vein N1 0.200 0.030
Ratio between the length of the vein N3' and the length of the vein N1 0.630 0.050
Ratio between the length of the vein N4 and the length of the vein N1 0.420 0.030
Ratio between the length of the vein N2' and the length of the vein N1 0.890 0.060
Ratio between the length of the vein N3 and the length of the vein N1 0.610 0.030
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.800 0.070
Ratio between the length of the vein N2 and the length of the vein N1 0.860 0.050
Ratio between the distance from the sinus and the length of the vein N2' 0.640 0.100
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.780 0.080
