Aleatico n (standard) - col_13: ampelometry

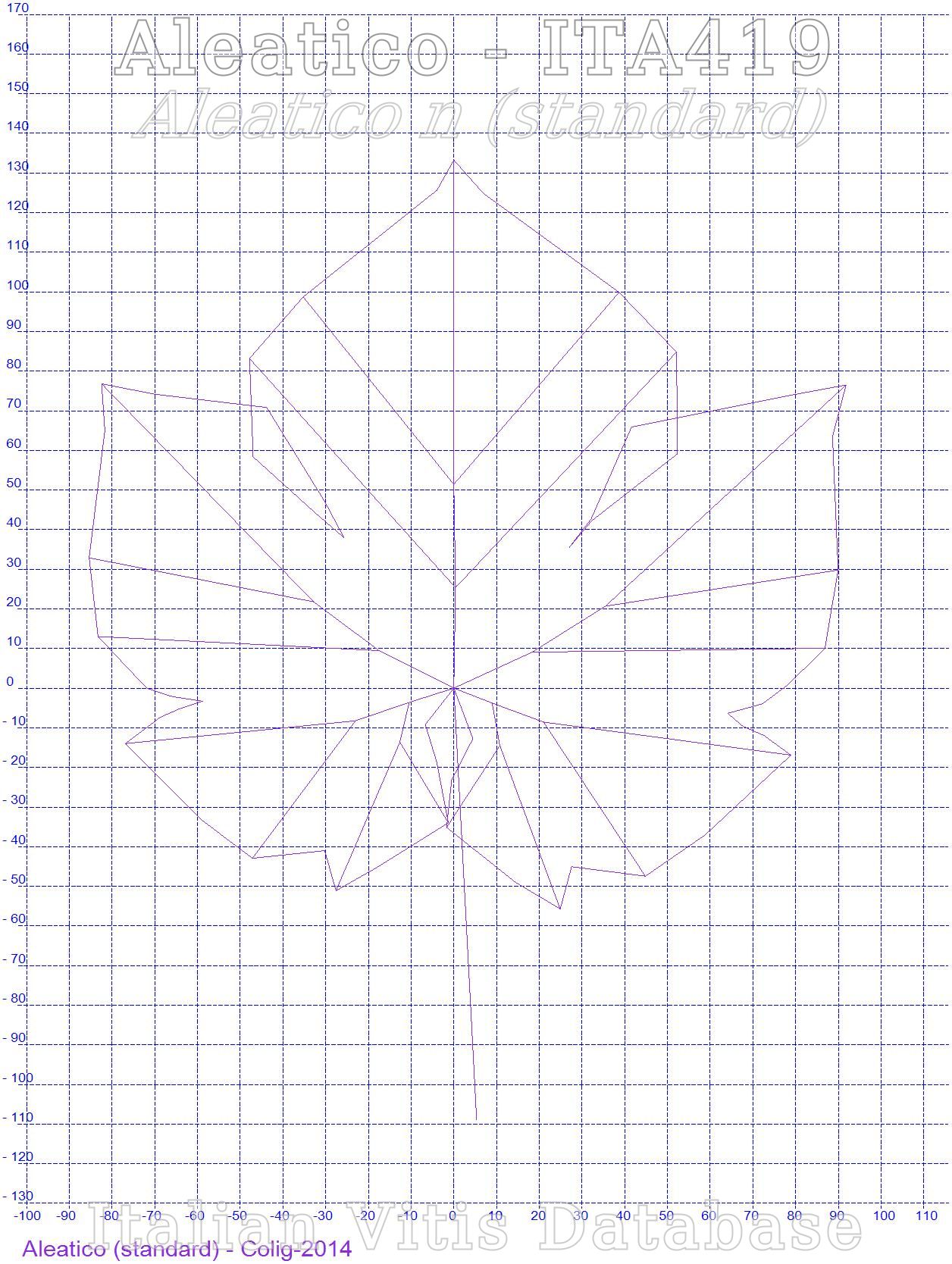

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 5 medium (135 mm)
602 PDF Mature leaf: length of vein N2 7 long (125 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 3 short (50 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 5 medium (60 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 5 medium (46°-55°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
612 PDF Mature leaf: length of tooth N2 3 short (10 mm)
613 PDF Mature leaf: width of tooth N2 5 medium (14 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 5 medium (14 mm)
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 5 medium (46-55 mm)
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower right sinus 64.800 9.700
Distance from the petiole sinus to the lower left sinus 59.100 8.200
Distance from the petiole sinus to the upper right sinus 44.700 9.800
Distance from the petiole sinus to the upper left sinus 46.100 5.700
Vein N3, length from the petiole sinus to vein N4 9.800 1.300
Vein N3', length from the petiole sinus to vein N4' 11.200 1.500
Length of vein N5 24.700 6.100
Length of vein N5' 23.800 4.600
Length of vein N4 54.500 8.800
Length of vein N4' 50.800 6.600
Distance between petiole point and end of vein N4 61.200 9.400
Distance between petiole point and end of vein N4' 58.400 7.100
Leaf width 177.500 22.400
Leaf length 191.700 19.100
Petiole length 109.300 8.100
Leaf length Including the petiole 242.500 22.000
Distance between the ends of veins N2 and N2' 174.600 24.200
Length of vein N1 133.300 14.700
Distance between the ends of veins N4 and N4' 53.700 8.300
Distance between the ends of veins N3 and N3' 156.500 18.500
Length of vein N2 120.300 17.000
Width of petiole sinus / Distance between points SP and SP' -7.100 4.300
Length of vein N3 81.600 14.700
Length of vein N2' 113.400 12.200
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 58.500 20.500
Length of vein N3' 78.300 9.200
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 53.400 12.400
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 62.200 5.600
Angle between N2 and N3 measured at the first bifurcation 49.400 6.200
Angle between N1 and N2' measured at the first bifurcation 61.500 5.400
Angle between N3 and N4 at the first fork of N3 59.700 8.800
Angle between N2 and N3' measured at the first bifurcation 48.000 6.400
Angle between N1 and N2 measured at the ends of the veins 49.900 7.000
Angle between N3' and N4' 57.200 4.900
Angle between N2 and N3 measured at the ends of the veins 52.100 6.800
Angle between N1' and N2' measured at the ends of the veins 47.100 6.500
Angle between N3 and N4 measured at the ends of the veins 53.700 5.800
Angle between N2' and N3' measured at the ends of the veins 53.100 7.000
Angle of opening of the petiole sinus measured at SP and at SP' 10.200 9.900
Angle between N3' and N4' measured at the ends of the veins 51.300 4.700
Angle between S and S' with the center in N1 31.500 9.600
Angle between D and D' with the center in N1 91.200 8.300
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 80.600 7.600
Angle between I and I' with the center in N1 48.200 4.900
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 77.900 8.300
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 7.366 2.324
Media of the base of the teeth of the right side 6.649 1.023
Media height of the teeth of the left side 5.573 1.193
Ratio between the height and the base of the tooth at the end of the vein N4' 0.649 0.097
Media height of the teeth of the right side 5.307 1.193
Ratio between the height and the base of the tooth at the end of the vein N2' 0.656 0.122
Ratio between the height and the base of the tooth at the end of the vein N4 0.703 0.189
Ratio between the height and the base of the teeth of the left side 0.830 0.380
Ratio between the height and the base of the tooth at the end of the vein N2 0.843 0.171
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.018 0.003
Ratio between the height and the base of the teeth of the right side 0.804 0.126
Ratio between the length of the vein N5' and the length of the vein N1 0.178 0.022
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.018 0.003
Ratio between the length of the vein N4' and the length of the vein N1 0.381 0.027
Ratio between the length of the vein N5 and the length of the vein N1 0.186 0.044
Ratio between the length of the vein N3' and the length of the vein N1 0.587 0.068
Ratio between the length of the vein N4 and the length of the vein N1 0.409 0.054
Ratio between the length of the vein N2' and the length of the vein N1 0.853 0.070
Ratio between the length of the vein N3 and the length of the vein N1 0.610 0.079
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.764 0.133
Ratio between the length of the vein N2 and the length of the vein N1 0.902 0.059
Ratio between the distance from the sinus and the length of the vein N2' 0.413 0.080
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.804 0.089
Multiplication between length and width of the leaf 34332.000 7364.000
Ratio between the length of the petiole OP and the length of the vein N1 0.824 0.052
Ratio between length and width of the leaf 1.085 0.082
Ratio between the distance from the sinus and the length of the vein N2 0.376 0.093
