Avarengo: ampelometry

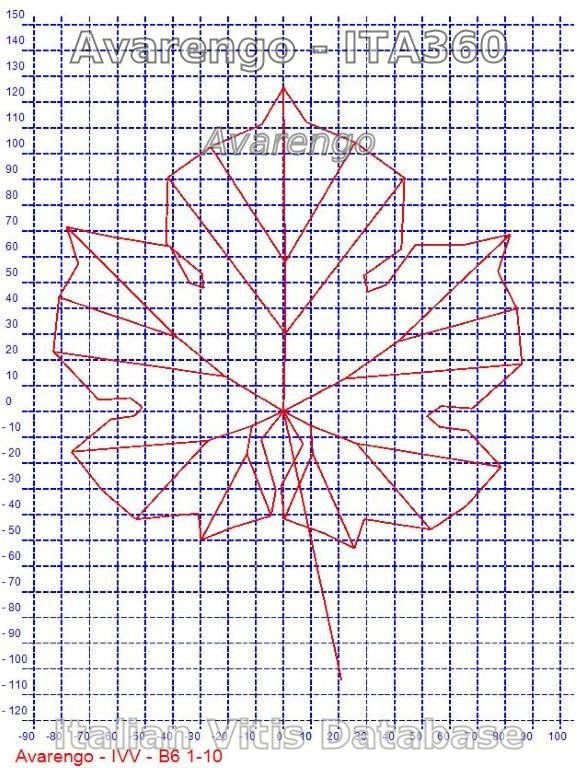

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 125.60 )
602 PDF Mature leaf: length of vein N2 ( 107.10 )
603 PDF Mature leaf: length of vein N3 ( 80.25 )
604 PDF Mature leaf: length of vein N4 ( 59.05 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 55.75 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 51.75 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 58.75 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 57.85 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 61.50 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 54.80 )
611 PDF Mature leaf: length of vein N5 ( 26.80 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 63.85 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -6.20 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 51.300 7.300
Distance from the petiole sinus to the lower right sinus 52.200 8.700
Distance from the petiole sinus to the upper left sinus 55.800 9.100
Distance from the petiole sinus to the upper right sinus 55.700 16.600
Vein N3', length from the petiole sinus to vein N4' 12.800 2.500
Vein N3, length from the petiole sinus to vein N4 11.400 3.300
Length of vein N5' 25.800 5.400
Length of vein N5 27.800 7.100
Length of vein N4' 48.100 7.500
Length of vein N4 51.100 9.100
Distance between petiole point and end of vein N4' 58.300 8.400
Distance between petiole point and end of vein N4 59.800 9.800
Leaf length 179.600 24.900
Leaf width 167.500 22.500
Leaf length Including the petiole 232.400 30.400
Petiole length 106.800 17.300
Length of vein N1 125.600 15.600
Distance between the ends of veins N2 and N2' 161.100 23.900
Distance between the ends of veins N3 and N3' 155.700 21.800
Distance between the ends of veins N4 and N4' 55.600 11.500
Width of petiole sinus / Distance between points SP and SP' -6.200 4.000
Length of vein N2 108.000 15.500
Length of vein N2' 106.200 11.100
Length of vein N3 81.800 13.400
Length of vein N3' 78.700 9.700
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 66.900 17.400
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 60.800 5.900
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 58.800 5.400
Angle between N1 and N2' measured at the first bifurcation 58.700 4.100
Angle between N2 and N3 measured at the first bifurcation 57.400 6.700
Angle between N2 and N3' measured at the first bifurcation 58.300 6.100
Angle between N3 and N4 at the first fork of N3 62.100 5.800
Angle between N3' and N4' 60.900 4.900
Angle between N1 and N2 measured at the ends of the veins 49.900 8.900
Angle between N1' and N2' measured at the ends of the veins 47.700 3.600
Angle between N2 and N3 measured at the ends of the veins 55.300 6.100
Angle between N2' and N3' measured at the ends of the veins 54.300 4.700
Angle between N3 and N4 measured at the ends of the veins 48.700 6.300
Angle between N3' and N4' measured at the ends of the veins 47.100 6.600
Angle of opening of the petiole sinus measured at SP and at SP' 10.600 8.300
Angle between D and D' with the center in N1 101.800 8.700
Angle between S and S' with the center in N1 41.300 9.500
Angle between I and I' with the center in N1 44.500 3.600
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 9.760 1.150
Media height of the teeth of the left side 11.070 1.600
Media of the base of the teeth of the right side 10.250 1.540
Media height of the teeth of the right side 11.040 1.540
Ratio between the height and the base of the tooth at the end of the vein N4' 0.640 0.100
Ratio between the height and the base of the tooth at the end of the vein N4 0.600 0.100
Ratio between the height and the base of the tooth at the end of the vein N2' 0.850 0.120
Ratio between the height and the base of the tooth at the end of the vein N2 0.860 0.130
Ratio between the height and the base of the teeth of the left side 1.140 0.140
Ratio between the height and the base of the teeth of the right side 1.080 0.100
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.000
Ratio between the length of the vein N5' and the length of the vein N1 0.210 0.030
Ratio between the length of the vein N5 and the length of the vein N1 0.220 0.040
Ratio between the length of the vein N4' and the length of the vein N1 0.380 0.030
Ratio between the length of the vein N4 and the length of the vein N1 0.410 0.040
Ratio between the length of the vein N3' and the length of the vein N1 0.650 0.040
Ratio between the length of the vein N3 and the length of the vein N1 0.650 0.050
Ratio between the length of the vein N2' and the length of the vein N1 0.850 0.040
Ratio between the length of the vein N2 and the length of the vein N1 0.860 0.040
Ratio between length and width of the leaf 1.070 0.050
Ratio between the length of the petiole OP and the length of the vein N1 0.850 0.100
Ratio between the distance from the sinus and the length of the vein N2 0.510 0.090
Ratio between the distance from the sinus and the length of the vein N2' 0.530 0.070
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.640 0.090
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.650 0.070
