Cortese: ampelometry

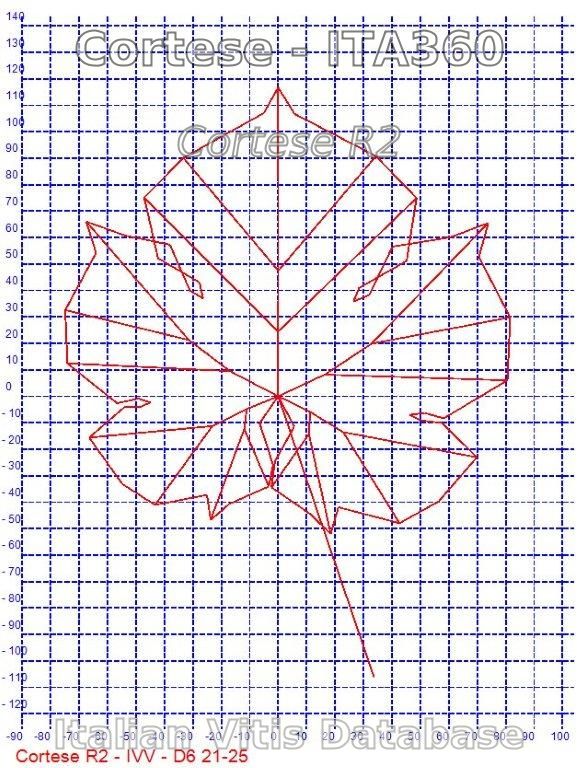

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 116.70 )
602 PDF Mature leaf: length of vein N2 ( 97.80 )
603 PDF Mature leaf: length of vein N3 ( 72.80 )
604 PDF Mature leaf: length of vein N4 ( 54.85 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 45.20 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 46.60 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 62.15 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 52.20 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 57.20 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 59.25 )
611 PDF Mature leaf: length of vein N5 ( 24.20 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 45.30 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -5.50 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 46.200 8.600
Distance from the petiole sinus to the lower right sinus 47.000 6.700
Distance from the petiole sinus to the upper left sinus 45.700 10.700
Distance from the petiole sinus to the upper right sinus 44.700 8.900
Vein N3', length from the petiole sinus to vein N4' 12.400 3.100
Vein N3, length from the petiole sinus to vein N4 12.900 2.800
Length of vein N5' 23.900 5.200
Length of vein N5 24.500 7.000
Length of vein N4' 45.200 7.800
Length of vein N4 47.600 8.400
Distance between petiole point and end of vein N4' 53.700 8.500
Distance between petiole point and end of vein N4 56.000 9.600
Leaf length 171.100 26.000
Leaf width 152.000 22.900
Leaf length Including the petiole 233.000 37.300
Petiole length 116.300 21.800
Length of vein N1 116.700 18.800
Distance between the ends of veins N2 and N2' 142.100 26.500
Distance between the ends of veins N3 and N3' 137.200 22.200
Distance between the ends of veins N4 and N4' 43.100 20.300
Width of petiole sinus / Distance between points SP and SP' 5.500 3.400
Length of vein N2 99.400 13.500
Length of vein N2' 96.200 15.000
Length of vein N3 74.400 9.900
Length of vein N3' 71.200 10.200
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 47.300 12.400
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 43.300 17.000
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 62.900 5.800
Angle between N1 and N2' measured at the first bifurcation 61.400 8.400
Angle between N2 and N3 measured at the first bifurcation 53.500 9.900
Angle between N2 and N3' measured at the first bifurcation 50.900 5.100
Angle between N3 and N4 at the first fork of N3 57.500 6.900
Angle between N3' and N4' 56.900 5.700
Angle between N1 and N2 measured at the ends of the veins 48.200 6.500
Angle between N1' and N2' measured at the ends of the veins 45.700 11.300
Angle between N2 and N3 measured at the ends of the veins 60.200 7.400
Angle between N2' and N3' measured at the ends of the veins 58.300 6.500
Angle between N3 and N4 measured at the ends of the veins 52.800 7.900
Angle between N3' and N4' measured at the ends of the veins 49.800 7.800
Angle of opening of the petiole sinus measured at SP and at SP' 8.600 8.000
Angle between D and D' with the center in N1 99.300 10.400
Angle between S and S' with the center in N1 38.000 11.600
Angle between I and I' with the center in N1 41.700 6.800
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 8.540 1.870
Media height of the teeth of the left side 7.630 1.920
Media of the base of the teeth of the right side 8.470 2.090
Media height of the teeth of the right side 7.830 2.090
Ratio between the height and the base of the tooth at the end of the vein N4' 1.100 0.790
Ratio between the height and the base of the tooth at the end of the vein N4 0.890 0.130
Ratio between the height and the base of the tooth at the end of the vein N2' 0.990 0.180
Ratio between the height and the base of the tooth at the end of the vein N2 0.990 0.150
Ratio between the height and the base of the teeth of the left side 0.900 0.140
Ratio between the height and the base of the teeth of the right side 0.930 0.120
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.010
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.010
Ratio between the length of the vein N5' and the length of the vein N1 0.210 0.030
Ratio between the length of the vein N5 and the length of the vein N1 0.210 0.040
Ratio between the length of the vein N4' and the length of the vein N1 0.390 0.050
Ratio between the length of the vein N4 and the length of the vein N1 0.410 0.060
Ratio between the length of the vein N3' and the length of the vein N1 0.640 0.050
Ratio between the length of the vein N3 and the length of the vein N1 0.640 0.070
Ratio between the length of the vein N2' and the length of the vein N1 0.830 0.070
Ratio between the length of the vein N2 and the length of the vein N1 0.860 0.070
Ratio between length and width of the leaf 1.130 0.060
Ratio between the length of the petiole OP and the length of the vein N1 1.000 0.130
Ratio between the distance from the sinus and the length of the vein N2 0.460 0.100
Ratio between the distance from the sinus and the length of the vein N2' 0.480 0.100
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.640 0.080
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.650 0.090
