Greco B.: ampelometry

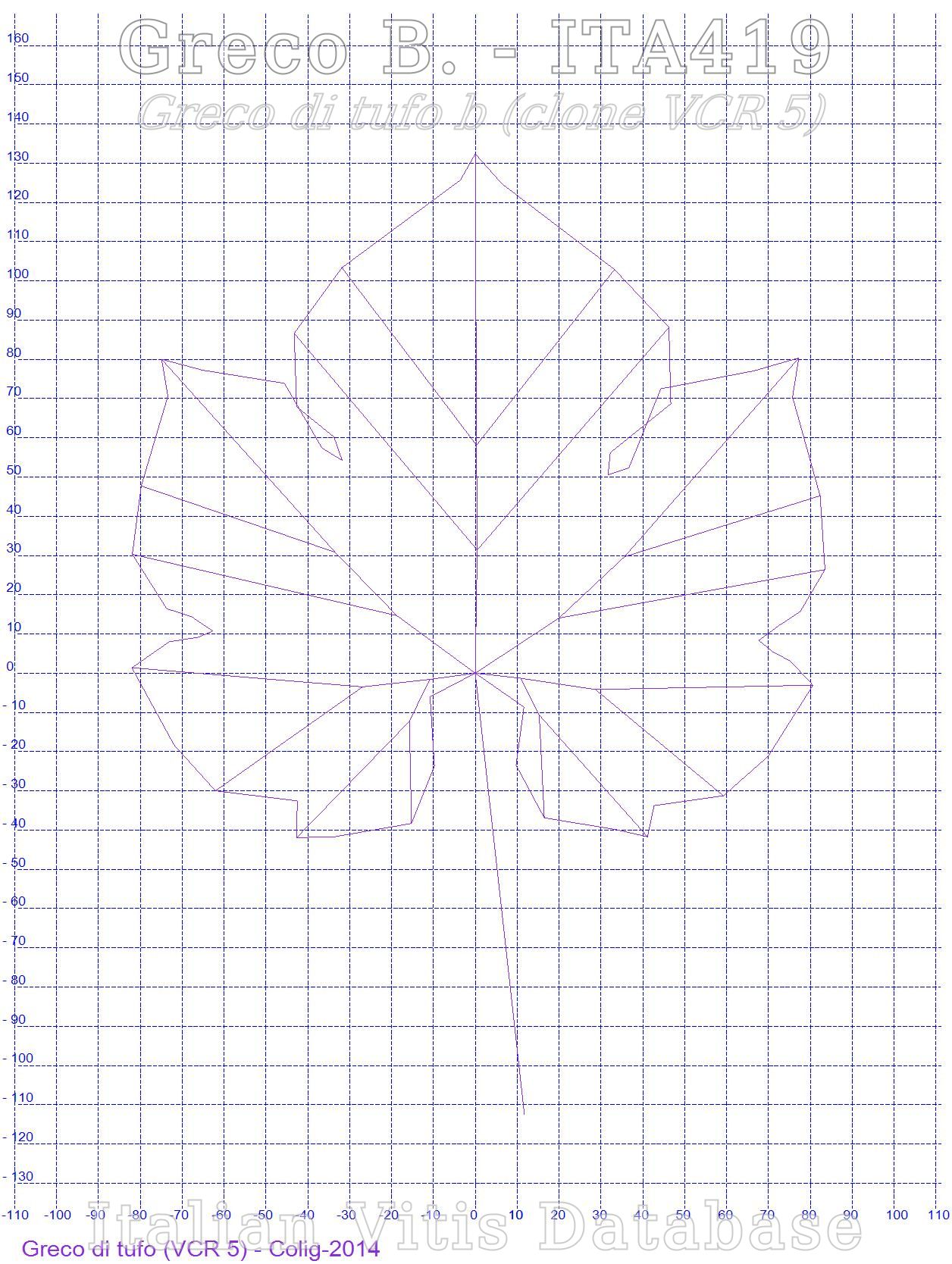

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 5 medium (135 mm)
602 PDF Mature leaf: length of vein N2 5 medium (105 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 5 medium (70 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 5 medium (60 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 5 medium (46°-55°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 3 small (30°-45°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 7 large (56°-70°)
612 PDF Mature leaf: length of tooth N2 3 short (10 mm)
613 PDF Mature leaf: width of tooth N2 3 narrow (10 mm)
614 PDF Mature leaf: length of tooth N4 1 very short (6 mm)
615 PDF Mature leaf: width of tooth N4 3 narrow (10 mm)
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 5 medium (46-55 mm)
superampelo
distances
descriptor value standard deviation
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 49.200 9.800
Distance from the petiole sinus to the lower right sinus 68.600 10.600
Distance from the petiole sinus to the lower left sinus 63.800 10.000
Distance from the petiole sinus to the upper right sinus 59.900 13.100
Distance from the petiole sinus to the upper left sinus 62.900 10.800
Vein N3, length from the petiole sinus to vein N4 11.100 2.400
Vein N3', length from the petiole sinus to vein N4' 11.100 1.200
Length of vein N5 26.700 5.500
Length of vein N5' 26.300 5.700
Length of vein N4 51.200 6.100
Length of vein N4' 51.600 5.200
Distance between petiole point and end of vein N4 59.500 7.500
Distance between petiole point and end of vein N4' 60.100 5.700
Leaf width 165.000 12.400
Leaf length 176.800 15.400
Petiole length 113.600 11.400
Leaf length Including the petiole 246.000 23.700
Distance between the ends of veins N2 and N2' 152.500 10.700
Length of vein N1 132.400 15.400
Distance between the ends of veins N4 and N4' 84.000 11.800
Distance between the ends of veins N3 and N3' 163.200 13.100
Length of vein N2 111.900 8.700
Width of petiole sinus / Distance between points SP and SP' -20.100 7.300
Length of vein N3 81.300 7.300
Length of vein N2' 109.900 9.600
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 49.700 7.700
Length of vein N3' 82.300 7.300
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 54.100 6.800
Angle between N2 and N3 measured at the first bifurcation 42.200 5.800
Angle between N1 and N2' measured at the first bifurcation 52.900 3.600
Angle between N3 and N4 at the first fork of N3 55.300 5.400
Angle between N2 and N3' measured at the first bifurcation 46.700 5.000
Angle between N1 and N2 measured at the ends of the veins 44.000 5.200
Angle between N3' and N4' 59.600 6.100
Angle between N2 and N3 measured at the ends of the veins 48.400 5.800
Angle between N1' and N2' measured at the ends of the veins 43.200 4.700
Angle between N3 and N4 measured at the ends of the veins 43.500 5.500
Angle between N2' and N3' measured at the ends of the veins 45.800 2.500
Angle of opening of the petiole sinus measured at SP and at SP' 46.300 18.300
Angle between N3' and N4' measured at the ends of the veins 45.400 3.000
Angle between S and S' with the center in N1 45.200 14.300
Angle between D and D' with the center in N1 90.800 10.000
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 63.700 6.900
Angle between I and I' with the center in N1 55.900 6.000
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 68.900 4.200
rations
descriptor value standard deviation
Multiplication between length and width of the leaf 29313.000 4514.000
Ratio between the length of the petiole OP and the length of the vein N1 0.864 0.087
Ratio between length and width of the leaf 1.072 0.049
Ratio between the distance from the sinus and the length of the vein N2 0.535 0.110
Media of the base of the teeth of the left side 6.813 1.282
Media of the base of the teeth of the right side 5.704 1.901
Media height of the teeth of the left side 4.670 1.074
Ratio between the height and the base of the tooth at the end of the vein N4' 0.512 0.084
Media height of the teeth of the right side 5.112 1.074
Ratio between the height and the base of the tooth at the end of the vein N2' 0.780 0.131
Ratio between the height and the base of the tooth at the end of the vein N4 0.522 0.068
Ratio between the height and the base of the teeth of the left side 0.694 0.162
Ratio between the height and the base of the tooth at the end of the vein N2 0.762 0.138
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.014 0.002
Ratio between the height and the base of the teeth of the right side 0.913 0.186
Ratio between the length of the vein N5' and the length of the vein N1 0.200 0.047
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.013 0.004
Ratio between the length of the vein N4' and the length of the vein N1 0.394 0.056
Ratio between the length of the vein N5 and the length of the vein N1 0.204 0.045
Ratio between the length of the vein N3' and the length of the vein N1 0.622 0.062
Ratio between the length of the vein N4 and the length of the vein N1 0.391 0.059
Ratio between the length of the vein N2' and the length of the vein N1 0.836 0.077
Ratio between the length of the vein N3 and the length of the vein N1 0.618 0.058
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.774 0.086
Ratio between the length of the vein N2 and the length of the vein N1 0.851 0.071
Ratio between the distance from the sinus and the length of the vein N2' 0.574 0.098
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.840 0.074
