Moscato Giallo: ampelometry

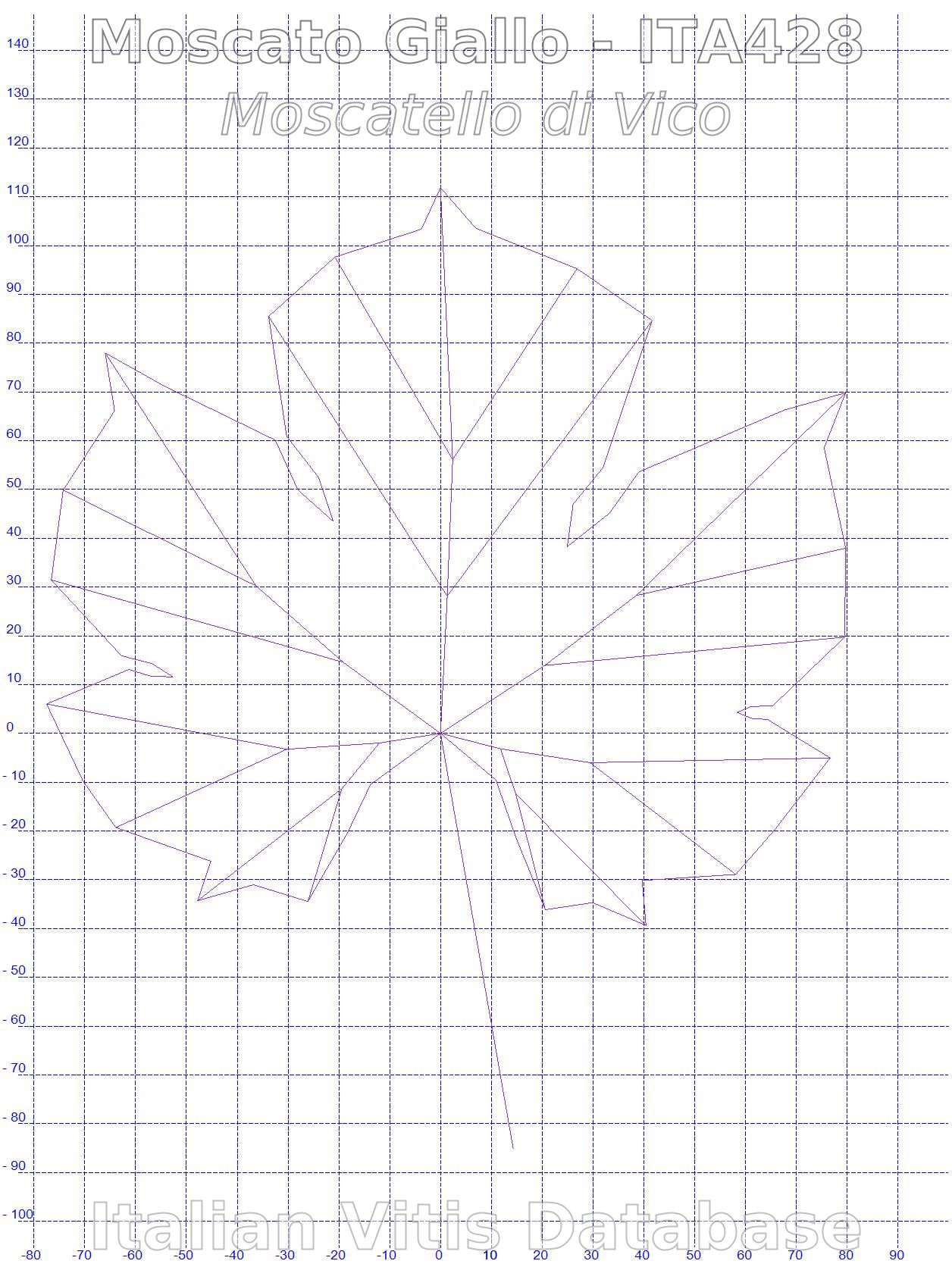

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 3 short (105 mm)
602 PDF Mature leaf: length of vein N2 5 medium (105 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 3 short (50 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 5 medium (60 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 5 medium (46°-55°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 5 medium (46°-55°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 5 medium (46°-55°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 7 large (56°-70°)
612 PDF Mature leaf: length of tooth N2 3 short (10 mm)
613 PDF Mature leaf: width of tooth N2 3 narrow (10 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 3 narrow (10 mm)
superampelo
distances
descriptor value standard deviation
Base of the tooth located at the end of N4' 10.882 2.105
Base of the tooth located at the end of N2 11.700 1.898
Distance from the petiole sinus to the lower left sinus 54.955 11.677
Base of the tooth located at the end of N4 11.009 2.610
Base of the tooth located at the end of N2' 11.609 2.135
Distance from the petiole sinus to the upper right sinus 45.891 10.804
Vein N3', length from the petiole sinus to vein N4' 12.273 3.601
Distance from the petiole sinus to the lower right sinus 59.236 6.378
Distance from the petiole sinus to the upper left sinus 48.800 10.498
Length of vein N5 26.018 10.356
Length of vein N4' 49.300 6.472
Vein N3, length from the petiole sinus to vein N4 12.373 1.915
Length of vein N5' 24.473 4.423
Distance between petiole point and end of vein N4 57.273 4.791
Leaf length 153.909 14.052
Length of vein N4 46.909 4.401
Distance between petiole point and end of vein N4' 59.745 6.658
Petiole length 86.527 13.822
Length of vein N1 111.864 7.913
Leaf width 160.573 18.143
Leaf length Including the petiole 198.391 20.995
Distance between the ends of veins N4 and N4' 89.155 10.931
Width of petiole sinus / Distance between points SP and SP' -33.582 4.553
Distance between the ends of veins N2 and N2' 146.782 15.356
Distance between the ends of veins N3 and N3' 155.555 16.996
Length of vein N3 77.727 9.010
Length of vein N3' 79.400 11.338
Length of vein N2 106.500 11.901
Length of vein N2' 103.516 8.536
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 58.991 12.248
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 50.155 15.374
Height of the tooth on the end of N4 9.327 1.908
Height of the tooth on the end of N4' 8.791 2.978
Height of the tooth on the end of N2 11.091 2.806
Altezza del dente posto all’estremità di N2' 11.436 4.113
angles
descriptor value standard deviation
Sum of the angles alpha' + beta' 101.973 7.001
Sum of the angles alpha + beta 101.573 8.421
Sum of the angles alpha' + beta' + gamma' 150.046 12.899
Sum of the angles alpha + beta + gamma 162.818 36.694
Angle between N1 and N2 measured at the first bifurcation 53.191 5.254
Angle between N1 and N2' measured at the first bifurcation 55.300 6.824
Angle between N3 and N4 at the first fork of N3 61.236 36.955
Angle between N3' and N4' 48.091 11.608
Angle between N2 and N3 measured at the first bifurcation 48.391 6.039
Angle between N2 and N3' measured at the first bifurcation 46.673 8.882
Angle between N2 and N3 measured at the ends of the veins 44.745 8.097
Angle between N2' and N3' measured at the ends of the veins 45.782 8.842
Angle between N1 and N2 measured at the ends of the veins 48.491 5.772
Angle between N1' and N2' measured at the ends of the veins 40.391 9.531
Angle of opening of the petiole sinus measured at SP and at SP' 77.345 14.419
Angle between D and D' with the center in N1 108.473 11.026
Angle between N3 and N4 measured at the ends of the veins 40.591 4.855
Angle between N3' and N4' measured at the ends of the veins 39.618 6.530
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 56.545 5.898
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 56.736 10.740
Angle between S and S' with the center in N1 38.145 17.110
Angle between I and I' with the center in N1 56.045 8.102
rations
descriptor value standard deviation
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.018 0.004
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.017 0.002
Ratio between the height and the base of the tooth at the end of the vein N2' 0.994 0.310
Ratio between the height and the base of the tooth at the end of the vein N2 0.950 0.166
Ratio between the length of the vein N4' and the length of the vein N1 0.441 0.056
Ratio between the length of the vein N4 and the length of the vein N1 0.420 0.039
Ratio between the length of the vein N5' and the length of the vein N1 0.219 0.037
Ratio between the length of the vein N5 and the length of the vein N1 0.232 0.087
Ratio between the length of the vein N2' and the length of the vein N1 0.926 0.053
Ratio between the length of the vein N2 and the length of the vein N1 0.952 0.080
Ratio between the length of the vein N3' and the length of the vein N1 0.710 0.088
Ratio between the length of the vein N3 and the length of the vein N1 0.695 0.066
Ratio between the distance from the sinus and the length of the vein N2' 0.477 0.127
Ratio between the distance from the sinus and the length of the vein N2 0.440 0.133
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.698 0.142
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.767 0.081
Multiplication between length and width of the leaf 24894.490 4822.411
Ratio between the length of the petiole OP and the length of the vein N1 0.770 0.083
Ratio between length and width of the leaf 0.963 0.067
Ratio between the height and the base of the tooth at the end of the vein N4' 0.825 0.249
Ratio between the height and the base of the tooth at the end of the vein N4 0.868 0.165
