Becuét - 256: ampelometry

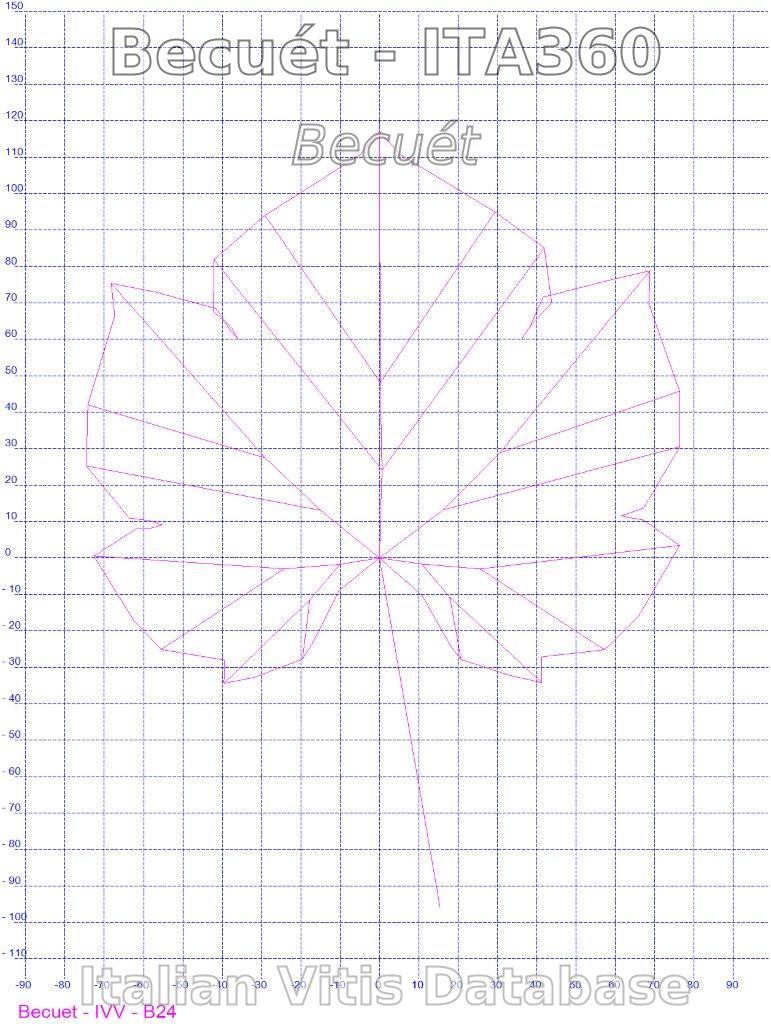

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 117.00 )
602 PDF Mature leaf: length of vein N2 ( 103.50 )
603 PDF Mature leaf: length of vein N3 ( 75.00 )
604 PDF Mature leaf: length of vein N4 ( 53.60 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 70.15 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 59.70 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 49.80 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 50.05 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 47.30 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 46.90 )
611 PDF Mature leaf: length of vein N5 ( 17.10 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 43.40 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -35.50 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 56.300 7.300
Distance from the petiole sinus to the lower right sinus 63.100 11.600
Distance from the petiole sinus to the upper left sinus 70.100 11.300
Distance from the petiole sinus to the upper right sinus 70.200 14.400
Vein N3', length from the petiole sinus to vein N4' 10.300 2.000
Vein N3, length from the petiole sinus to vein N4 11.000 1.600
Length of vein N5' 16.500 3.600
Length of vein N5 17.700 3.000
Length of vein N4' 44.200 7.200
Length of vein N4 45.500 7.900
Distance between petiole point and end of vein N4' 52.700 7.100
Distance between petiole point and end of vein N4 54.500 8.300
Leaf length 153.900 18.000
Leaf width 151.000 16.600
Leaf length Including the petiole 215.000 26.400
Petiole length 98.000 18.300
Length of vein N1 117.000 14.200
Distance between the ends of veins N2 and N2' 137.500 18.600
Distance between the ends of veins N3 and N3' 149.200 16.100
Distance between the ends of veins N4 and N4' 81.000 12.700
Width of petiole sinus / Distance between points SP and SP' -35.500 8.900
Length of vein N2 105.000 12.400
Length of vein N2' 102.000 11.700
Length of vein N3 77.100 10.600
Length of vein N3' 72.900 6.300
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 42.900 8.300
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 43.900 9.300
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 49.500 2.900
Angle between N1 and N2' measured at the first bifurcation 50.100 3.400
Angle between N2 and N3 measured at the first bifurcation 48.100 5.000
Angle between N2 and N3' measured at the first bifurcation 52.000 4.600
Angle between N3 and N4 at the first fork of N3 47.200 6.400
Angle between N3' and N4' 47.400 4.400
Angle between N1 and N2 measured at the ends of the veins 41.200 5.300
Angle between N1' and N2' measured at the ends of the veins 42.200 5.100
Angle between N2 and N3 measured at the ends of the veins 46.400 6.900
Angle between N2' and N3' measured at the ends of the veins 47.400 4.400
Angle between N3 and N4 measured at the ends of the veins 42.200 5.900
Angle between N3' and N4' measured at the ends of the veins 41.200 5.200
Angle of opening of the petiole sinus measured at SP and at SP' 73.000 16.700
Angle between D and D' with the center in N1 103.800 11.200
Angle between S and S' with the center in N1 66.700 18.200
Angle between I and I' with the center in N1 57.500 4.900
rations
descriptor value standard deviation
Ratio between the length of the petiole OP and the length of the vein N1 0.840 0.150
Ratio between the distance from the sinus and the length of the vein N2 0.670 0.120
Ratio between the distance from the sinus and the length of the vein N2' 0.690 0.110
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.810 0.060
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.770 0.100
Media of the base of the teeth of the left side 5.930 0.850
Media height of the teeth of the left side 6.510 0.920
Media of the base of the teeth of the right side 5.460 0.790
Media height of the teeth of the right side 6.290 0.790
Ratio between the height and the base of the tooth at the end of the vein N4' 0.620 0.090
Ratio between the height and the base of the tooth at the end of the vein N4 0.650 0.080
Ratio between the height and the base of the tooth at the end of the vein N2' 0.660 0.100
Ratio between the height and the base of the tooth at the end of the vein N2 0.640 0.080
Ratio between the height and the base of the teeth of the left side 1.110 0.150
Ratio between the height and the base of the teeth of the right side 1.160 0.140
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.010 0.000
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.010 0.000
Ratio between the length of the vein N5' and the length of the vein N1 0.140 0.030
Ratio between the length of the vein N5 and the length of the vein N1 0.150 0.020
Ratio between the length of the vein N4' and the length of the vein N1 0.380 0.070
Ratio between the length of the vein N4 and the length of the vein N1 0.390 0.040
Ratio between the length of the vein N3' and the length of the vein N1 0.660 0.050
Ratio between the length of the vein N3 and the length of the vein N1 0.660 0.040
Ratio between the length of the vein N2' and the length of the vein N1 0.880 0.070
Ratio between the length of the vein N2 and the length of the vein N1 0.900 0.050
Ratio between length and width of the leaf 1.020 0.050
