Bonarda piemontese 74 - 289: ampelometry

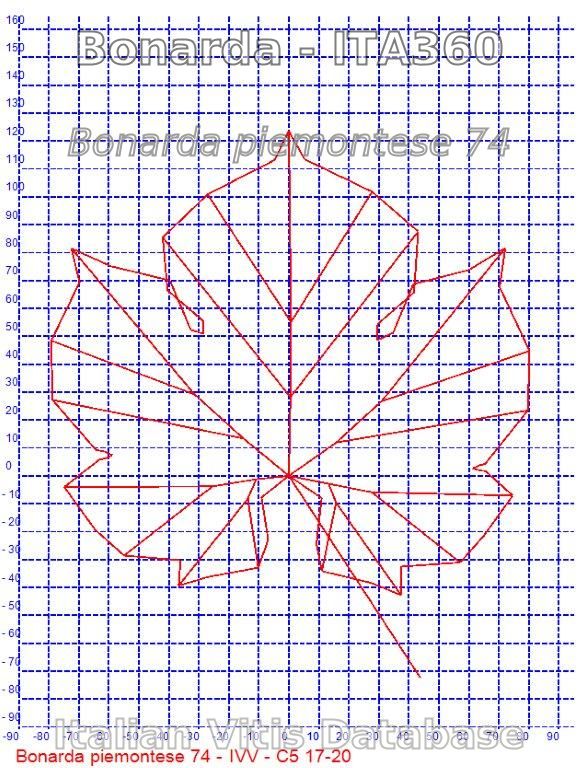

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 123.60 )
602 PDF Mature leaf: length of vein N2 ( 109.65 )
603 PDF Mature leaf: length of vein N3 ( 75.40 )
604 PDF Mature leaf: length of vein N4 ( 55.80 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 57.65 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 60.55 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 50.40 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 48.95 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 60.65 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 52.80 )
611 PDF Mature leaf: length of vein N5 ( 25.35 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 49.55 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -16.80 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 59.500 9.900
Distance from the petiole sinus to the lower right sinus 61.600 6.500
Distance from the petiole sinus to the upper left sinus 58.500 14.300
Distance from the petiole sinus to the upper right sinus 56.800 15.700
Vein N3', length from the petiole sinus to vein N4' 11.100 3.000
Vein N3, length from the petiole sinus to vein N4 13.700 1.700
Length of vein N5' 25.400 5.000
Length of vein N5 25.300 3.600
Length of vein N4' 46.800 6.500
Length of vein N4 46.900 4.500
Distance between petiole point and end of vein N4' 54.500 8.900
Distance between petiole point and end of vein N4 57.100 5.600
Leaf length 168.700 15.100
Leaf width 156.400 13.100
Leaf length Including the petiole 212.900 22.500
Petiole length 89.300 15.000
Length of vein N1 123.600 10.800
Distance between the ends of veins N2 and N2' 145.100 12.000
Distance between the ends of veins N3 and N3' 149.900 16.800
Distance between the ends of veins N4 and N4' 74.800 14.500
Width of petiole sinus / Distance between points SP and SP' -16.800 5.700
Length of vein N2 109.500 10.400
Length of vein N2' 109.800 12.800
Length of vein N3 75.400 7.800
Length of vein N3' 75.400 10.300
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 49.200 9.100
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 49.900 12.000
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 51.900 3.700
Angle between N1 and N2' measured at the first bifurcation 48.900 4.300
Angle between N2 and N3 measured at the first bifurcation 49.000 3.600
Angle between N2 and N3' measured at the first bifurcation 48.900 7.600
Angle between N3 and N4 at the first fork of N3 64.400 25.100
Angle between N3' and N4' 56.900 4.700
Angle between N1 and N2 measured at the ends of the veins 41.700 6.200
Angle between N1' and N2' measured at the ends of the veins 41.700 6.400
Angle between N2 and N3 measured at the ends of the veins 53.700 5.800
Angle between N2' and N3' measured at the ends of the veins 51.900 4.800
Angle between N3 and N4 measured at the ends of the veins 43.300 4.800
Angle between N3' and N4' measured at the ends of the veins 44.200 6.200
Angle of opening of the petiole sinus measured at SP and at SP' 36.900 12.400
Angle between D and D' with the center in N1 98.900 11.100
Angle between S and S' with the center in N1 44.800 19.000
Angle between I and I' with the center in N1 53.700 5.300
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 7.680 1.030
Media height of the teeth of the left side 7.950 1.330
Media of the base of the teeth of the right side 7.370 1.430
Media height of the teeth of the right side 7.960 1.430
Ratio between the height and the base of the tooth at the end of the vein N4' 0.730 0.100
Ratio between the height and the base of the tooth at the end of the vein N4 0.750 0.100
Ratio between the height and the base of the tooth at the end of the vein N2' 1.050 0.270
Ratio between the height and the base of the tooth at the end of the vein N2 1.100 0.230
Ratio between the height and the base of the teeth of the left side 1.040 0.140
Ratio between the height and the base of the teeth of the right side 1.090 0.150
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.000
Ratio between the length of the vein N5' and the length of the vein N1 0.210 0.040
Ratio between the length of the vein N5 and the length of the vein N1 0.210 0.040
Ratio between the length of the vein N4' and the length of the vein N1 0.380 0.050
Ratio between the length of the vein N4 and the length of the vein N1 0.380 0.030
Ratio between the length of the vein N3' and the length of the vein N1 0.610 0.070
Ratio between the length of the vein N3 and the length of the vein N1 0.610 0.040
Ratio between the length of the vein N2' and the length of the vein N1 0.890 0.060
Ratio between the length of the vein N2 and the length of the vein N1 0.890 0.060
Ratio between length and width of the leaf 1.080 0.060
Ratio between the length of the petiole OP and the length of the vein N1 0.720 0.110
Ratio between the distance from the sinus and the length of the vein N2 0.530 0.170
Ratio between the distance from the sinus and the length of the vein N2' 0.540 0.150
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.820 0.070
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.790 0.080
