Bombino Nero - TV2: ampelometry

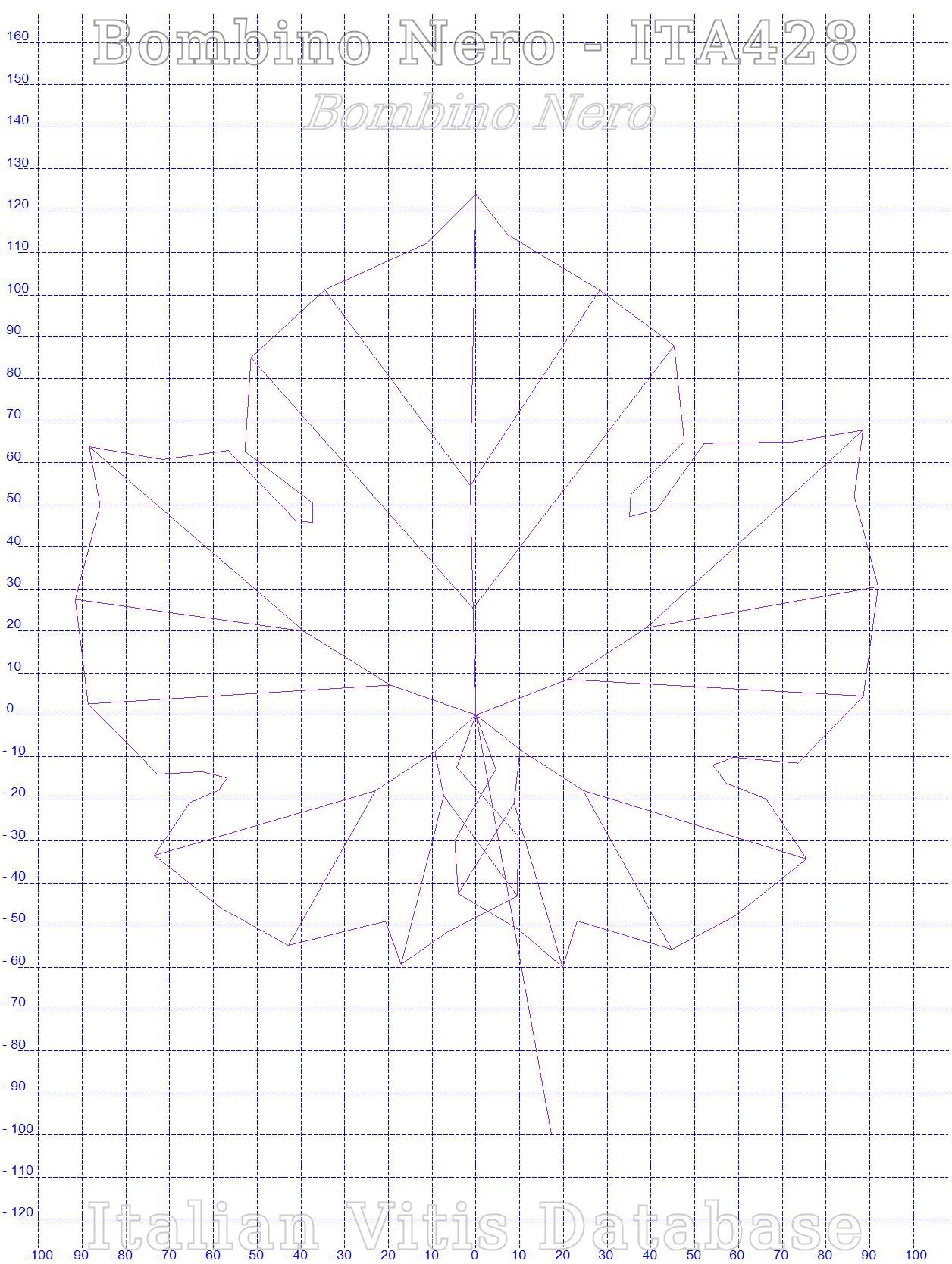

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 5 medium (135 mm)
602 PDF Mature leaf: length of vein N2 5 medium (105 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 3 short (50 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 5 medium (60 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 7 large (56°-70°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
612 PDF Mature leaf: length of tooth N2 5 medium (14 mm)
613 PDF Mature leaf: width of tooth N2 7 wide (18 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 5 medium (14 mm)
616 PDF Mature leaf: number of teeth between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 including the limits 3 small (about 4)
superampelo
distances
descriptor value standard deviation
Length of vein N4 54.070 5.880
Distance between petiole point and end of vein N4' 62.660 6.700
Length of vein N5 26.660 4.943
Length of vein N4' 52.060 6.570
Leaf width 178.540 18.614
Leaf length Including the petiole 225.730 24.866
Distance between petiole point and end of vein N4 64.570 5.185
Leaf length 187.560 12.691
Distance between the ends of veins N2 and N2' 177.300 19.166
Distance between the ends of veins N3 and N3' 149.680 11.311
Petiole length 101.790 20.147
Length of vein N1 123.950 8.584
Length of vein N2 112.160 8.714
Length of vein N2' 109.580 10.842
Distance between the ends of veins N4 and N4' 38.010 16.966
Width of petiole sinus / Distance between points SP and SP' -17.920 7.981
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 69.270 14.283
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 66.060 15.102
Length of vein N3 83.560 6.896
Length of vein N3' 82.190 7.724
Height of the tooth on the end of N2 13.260 3.282
Altezza del dente posto all’estremità di N2' 13.160 2.493
Height of the tooth on the end of N4 10.710 2.361
Height of the tooth on the end of N4' 9.690 3.646
Base of the tooth located at the end of N4 14.020 3.133
Base of the tooth located at the end of N2' 18.120 3.402
Base of the tooth located at the end of N4' 14.920 2.591
Distance from the petiole sinus to the lower right sinus 55.760 7.518
Distance from the petiole sinus to the upper left sinus 59.280 13.227
Base of the tooth located at the end of N2 19.310 3.402
Distance from the petiole sinus to the lower left sinus 59.750 9.464
Vein N3, length from the petiole sinus to vein N4 13.160 2.373
Length of vein N5' 30.320 4.722
Distance from the petiole sinus to the upper right sinus 59.110 11.014
Vein N3', length from the petiole sinus to vein N4' 12.970 3.500
angles
descriptor value standard deviation
Angle between N2 and N3 measured at the first bifurcation 61.520 5.273
Angle between N2 and N3' measured at the first bifurcation 60.940 5.355
Angle between N1 and N2 measured at the first bifurcation 69.180 4.030
Angle between N1 and N2' measured at the first bifurcation 69.220 5.186
Angle between N1 and N2 measured at the ends of the veins 52.510 6.954
Angle between N1' and N2' measured at the ends of the veins 53.940 5.936
Angle between N3 and N4 at the first fork of N3 60.810 4.570
Angle between N3' and N4' 64.570 6.162
Angle between N3 and N4 measured at the ends of the veins 47.440 8.358
Angle between N3' and N4' measured at the ends of the veins 49.550 6.779
Angle between N2 and N3 measured at the ends of the veins 61.830 8.881
Angle between N2' and N3' measured at the ends of the veins 60.140 8.426
Angle between S and S' with the center in N1 50.740 10.930
Angle between I and I' with the center in N1 44.120 5.410
Angle of opening of the petiole sinus measured at SP and at SP' 31.950 15.539
Angle between D and D' with the center in N1 104.480 11.713
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 71.210 11.738
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 78.100 10.061
Sum of the angles alpha' + beta' + gamma' 194.710 10.950
Sum of the angles alpha + beta + gamma 191.490 11.497
Sum of the angles alpha' + beta' 130.160 7.747
Sum of the angles alpha + beta 130.700 8.369
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 10.630 2.089
Media height of the teeth of the left side 10.448 2.252
Ratio between the height and the base of the tooth at the end of the vein N4' 0.633 0.213
Ratio between the height and the base of the tooth at the end of the vein N4 0.770 0.100
Media of the base of the teeth of the right side 10.560 2.308
Media height of the teeth of the right side 11.564 1.551
Ratio between the height and the base of the teeth of the left side 0.986 0.110
Ratio between the height and the base of the teeth of the right side 1.119 0.163
Ratio between the height and the base of the tooth at the end of the vein N2' 0.735 0.131
Ratio between the height and the base of the tooth at the end of the vein N2 0.688 0.144
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.003
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.003
Ratio between the length of the vein N5' and the length of the vein N1 0.246 0.042
Ratio between the length of the vein N5 and the length of the vein N1 0.215 0.040
Ratio between the length of the vein N3' and the length of the vein N1 0.663 0.041
Ratio between the length of the vein N3 and the length of the vein N1 0.676 0.053
Ratio between the length of the vein N4' and the length of the vein N1 0.421 0.052
Ratio between the length of the vein N4 and the length of the vein N1 0.438 0.053
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.728 0.098
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.669 0.089
Ratio between the length of the vein N2' and the length of the vein N1 0.883 0.053
Ratio between the length of the vein N2 and the length of the vein N1 0.906 0.051
Ratio between the length of the petiole OP and the length of the vein N1 0.821 0.152
Ratio between length and width of the leaf 1.056 0.072
Ratio between the distance from the sinus and the length of the vein N2' 0.541 0.100
Ratio between the distance from the sinus and the length of the vein N2 0.527 0.091
Multiplication between length and width of the leaf 33647.860 5507.090
