Bombino Nero falso - VG14: ampelometry

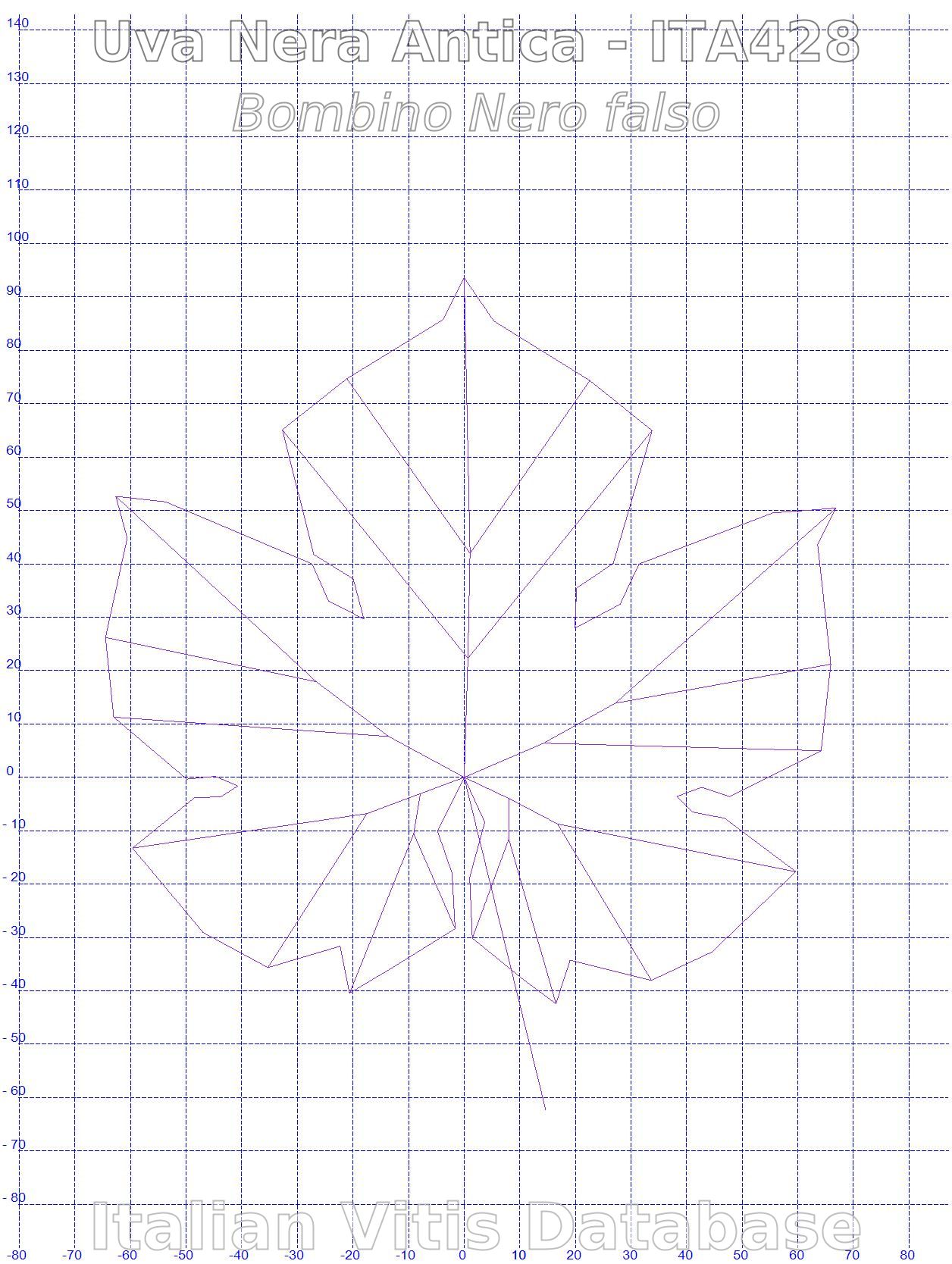

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 3 short (105 mm)
602 PDF Mature leaf: length of vein N2 3 short (85 mm)
603 PDF Mature leaf: length of vein N3 3 short (55 mm)
604 PDF Mature leaf: length of vein N4 7 long (45 mm)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 1 very short (30 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 3 short (45 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 5 medium (46°-55°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
612 PDF Mature leaf: length of tooth N2 1 short (6 mm)
613 PDF Mature leaf: width of tooth N2 3 narrow (10 mm)
614 PDF Mature leaf: length of tooth N4 1 very short (6 mm)
615 PDF Mature leaf: width of tooth N4 3 narrow (10 mm)
superampelo
distances
descriptor value standard deviation
Base of the tooth located at the end of N4' 10.386 1.600
Base of the tooth located at the end of N2 10.214 1.049
Distance from the petiole sinus to the lower left sinus 40.929 6.753
Base of the tooth located at the end of N4 9.386 1.302
Base of the tooth located at the end of N2' 9.971 2.512
Distance from the petiole sinus to the upper right sinus 34.414 3.502
Vein N3', length from the petiole sinus to vein N4' 8.543 1.925
Distance from the petiole sinus to the lower right sinus 38.757 6.522
Distance from the petiole sinus to the upper left sinus 34.786 3.638
Length of vein N5 20.543 5.389
Length of vein N4' 40.043 6.280
Vein N3, length from the petiole sinus to vein N4 9.014 1.214
Length of vein N5' 19.414 5.666
Distance between petiole point and end of vein N4 45.671 5.341
Leaf length 137.429 19.629
Length of vein N4 39.514 4.935
Distance between petiole point and end of vein N4' 46.100 7.141
Petiole length 65.471 11.118
Length of vein N1 93.614 13.737
Leaf width 132.771 13.618
Leaf length Including the petiole 159.086 20.958
Distance between the ends of veins N4 and N4' 37.486 7.339
Width of petiole sinus / Distance between points SP and SP' -4.129 1.970
Distance between the ends of veins N2 and N2' 129.929 15.456
Distance between the ends of veins N3 and N3' 120.000 16.712
Length of vein N3 62.800 7.753
Length of vein N3' 61.400 9.927
Length of vein N2 83.929 7.386
Length of vein N2' 81.969 13.527
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 51.200 6.024
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 47.200 9.906
Height of the tooth on the end of N4 6.543 0.450
Height of the tooth on the end of N4' 7.486 1.611
Height of the tooth on the end of N2 8.457 2.467
Altezza del dente posto all’estremità di N2' 6.886 2.693
angles
descriptor value standard deviation
Sum of the angles alpha' + beta' 112.871 9.470
Sum of the angles alpha + beta 113.800 5.200
Sum of the angles alpha' + beta' + gamma' 172.100 9.959
Sum of the angles alpha + beta + gamma 176.243 7.486
Angle between N1 and N2 measured at the first bifurcation 68.500 22.478
Angle between N1 and N2' measured at the first bifurcation 61.657 5.853
Angle between N3 and N4 at the first fork of N3 62.457 7.308
Angle between N3' and N4' 59.214 3.648
Angle between N2 and N3 measured at the first bifurcation 45.300 20.137
Angle between N2 and N3' measured at the first bifurcation 51.214 4.230
Angle between N2 and N3 measured at the ends of the veins 53.629 8.124
Angle between N2' and N3' measured at the ends of the veins 52.314 3.377
Angle between N1 and N2 measured at the ends of the veins 53.171 4.065
Angle between N1' and N2' measured at the ends of the veins 49.671 3.562
Angle of opening of the petiole sinus measured at SP and at SP' 10.557 7.364
Angle between D and D' with the center in N1 100.757 18.923
Angle between N3 and N4 measured at the ends of the veins 52.057 5.477
Angle between N3' and N4' measured at the ends of the veins 50.729 5.579
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 72.286 8.426
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 73.729 5.619
Angle between S and S' with the center in N1 33.043 5.216
Angle between I and I' with the center in N1 45.214 9.288
rations
descriptor value standard deviation
Ratio between the height and the base of the tooth at the end of the vein N4' 0.715 0.091
Ratio between the height and the base of the tooth at the end of the vein N4 0.707 0.100
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.026 0.003
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.028 0.004
Ratio between the height and the base of the tooth at the end of the vein N2' 0.701 0.277
Ratio between the height and the base of the tooth at the end of the vein N2 0.839 0.256
Ratio between the length of the vein N4' and the length of the vein N1 0.430 0.053
Ratio between the length of the vein N4 and the length of the vein N1 0.425 0.049
Ratio between the length of the vein N5' and the length of the vein N1 0.205 0.037
Ratio between the length of the vein N5 and the length of the vein N1 0.220 0.046
Ratio between the length of the vein N2' and the length of the vein N1 0.875 0.053
Ratio between the length of the vein N2 and the length of the vein N1 0.909 0.120
Ratio between the length of the vein N3' and the length of the vein N1 0.661 0.100
Ratio between the length of the vein N3 and the length of the vein N1 0.677 0.088
Ratio between the distance from the sinus and the length of the vein N2' 0.431 0.062
Ratio between the distance from the sinus and the length of the vein N2 0.412 0.048
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.667 0.049
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.615 0.049
Multiplication between length and width of the leaf 18454.290 4595.015
Ratio between the length of the petiole OP and the length of the vein N1 0.706 0.124
Ratio between length and width of the leaf 1.033 0.069
