Gaglioppo - 06: ampelometry

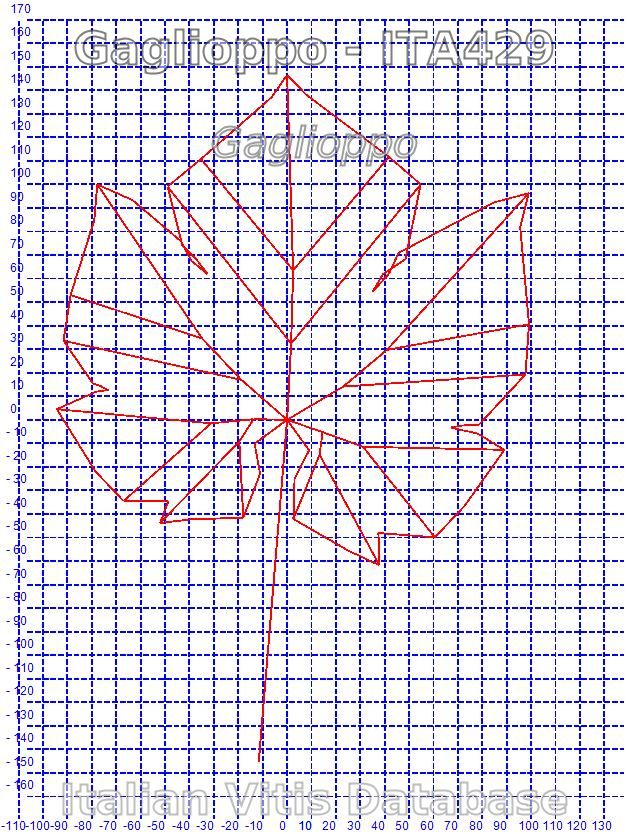

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 5.00 )
602 PDF Mature leaf: length of vein N2 ( 7.00 )
603 PDF Mature leaf: length of vein N3 ( 7.00 )
604 PDF Mature leaf: length of vein N4 ( 9.00 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 5.00 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 7.00 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 5.00 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 3.00 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 7.00 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 9.00 )
611 PDF Mature leaf: length of vein N5
612 PDF Mature leaf: length of tooth N2 ( 5.00 )
613 PDF Mature leaf: width of tooth N2 ( 7.00 )
614 PDF Mature leaf: length of tooth N4 ( 3.00 )
615 PDF Mature leaf: width of tooth N4 ( 5.00 )
616 PDF Mature leaf: number of teeth between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 including the limits ( 1.00 )
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 5.00 )
superampelo
distances
descriptor value standard deviation
Leaf width 194.700 12.800
Petiole length 147.000 1.600
Length of vein N1 146.500 9.500
Distance between the ends of veins N2 and N2' 177.000 7.500
Distance between the ends of veins N2 and N2' 177.000 7.500
Distance between the ends of veins N3 and N3' 185.700 17.200
Distance between the ends of veins N4 and N4' 91.900 19.800
Width of petiole sinus / Distance between points SP and SP' -15.900 10.800
Length of vein N2 138.200 14.700
Length of vein N2' 127.000 7.600
Length of vein N3 91.900 9.900
Length of vein N3' 95.200 10.700
Length of vein N4 61.600 9.400
Length of vein N4' 60.500 11.100
Length of vein N5 29.700 2.900
Length of vein N5' 33.000 9.000
Distance between petiole point and end of vein N4 73.300 4.000
Distance between petiole point and end of vein N4' 69.900 8.800
Vein N3, length from the petiole sinus to vein N4 15.700 8.700
Vein N3', length from the petiole sinus to vein N4' 13.900 3.200
Distance from the petiole sinus to the upper right sinus 64.700 15.000
Distance from the petiole sinus to the upper left sinus 70.000 4.500
Distance from the petiole sinus to the lower right sinus 67.600 3.300
Distance from the petiole sinus to the lower left sinus 74.800 14.000
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 60.100 4.000
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 60.100 4.000
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 44.100 9.400
Leaf length 208.300 17.800
Leaf length Including the petiole 293.500 9.400
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 55.600 3.100
Angle between N1 and N2' measured at the first bifurcation 50.400 4.900
Angle between N2 and N3 measured at the first bifurcation 49.900 5.600
Angle between N2 and N3' measured at the first bifurcation 18.600 12.700
Angle between N3 and N4 at the first fork of N3 77.200 4.790
Angle between N3' and N4' 53.200 5.900
Angle between N1 and N2 measured at the ends of the veins 45.900 1.900
Angle between N1' and N2' measured at the ends of the veins 37.900 4.800
Angle between N2 and N3 measured at the ends of the veins 51.700 1.250
Angle between N2' and N3' measured at the ends of the veins 49.100 6.300
Angle between N3 and N4 measured at the ends of the veins 50.600 10.300
Angle between N3' and N4' measured at the ends of the veins 42.900 2.900
Angle of opening of the petiole sinus measured at SP and at SP' 35.700 2.650
Angle between D and D' with the center in N1 95.400 6.000
Angle between S and S' with the center in N1 43.000 1.240
Angle between I and I' with the center in N1 52.800 5.300
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 0.000 0.000
rations
descriptor value standard deviation
Ratio between length and width of the leaf 1.070 0.020
Ratio between the distance from the sinus and the length of the vein N2 0.480 0.150
Ratio between the distance from the sinus and the length of the vein N2' 0.550 0.050
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.750 0.110
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.780 0.090
Ratio between the length of the vein N2' and the length of the vein N1 0.870 0.040
Ratio between the length of the vein N2 and the length of the vein N1 0.940 0.060
Ratio between the length of the vein N3 and the length of the vein N1 0.620 0.040
Ratio between the length of the vein N3' and the length of the vein N1 0.650 0.060
Ratio between the length of the vein N4 and the length of the vein N1 0.420 0.040
Ratio between the length of the vein N4' and the length of the vein N1 0.410 0.070
Ratio between the length of the vein N5 and the length of the vein N1 0.260 0.060
Ratio between the length of the vein N5' and the length of the vein N1 0.260 0.060
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.010 0.000
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.010 0.000
