Sangiovese (clone VCR 6) - col_8: ampelometry

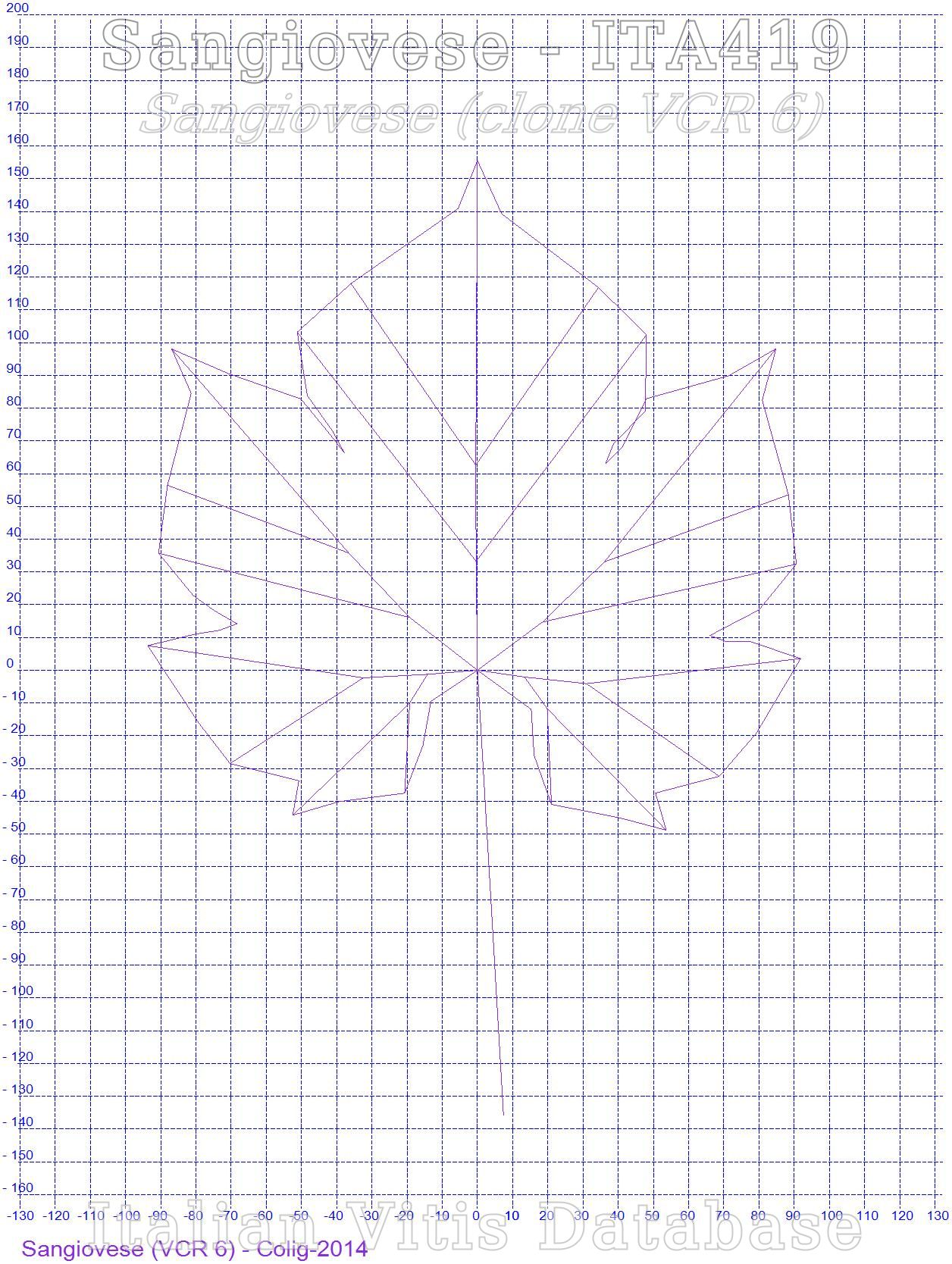

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 7 long (165 mm)
602 PDF Mature leaf: length of vein N2 7 long (125 mm)
603 PDF Mature leaf: length of vein N3 7 long (95 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 5 medium (70 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 7 long (75 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 5 medium (46°-55°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 5 medium (46°-55°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 5 medium (46°-55°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 7 large (56°-70°)
612 PDF Mature leaf: length of tooth N2 5 medium (14 mm)
613 PDF Mature leaf: width of tooth N2 5 medium (14 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 5 medium (14 mm)
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 5 medium (46-55 mm)
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower right sinus 67.800 12.000
Distance from the petiole sinus to the lower left sinus 70.400 7.600
Distance from the petiole sinus to the upper right sinus 73.100 14.700
Distance from the petiole sinus to the upper left sinus 76.700 13.100
Vein N3, length from the petiole sinus to vein N4 13.800 2.800
Vein N3', length from the petiole sinus to vein N4' 14.400 2.000
Length of vein N5 30.100 5.100
Length of vein N5' 28.000 6.700
Length of vein N4 63.400 7.200
Length of vein N4' 58.400 10.700
Distance between petiole point and end of vein N4 74.200 7.400
Distance between petiole point and end of vein N4' 69.700 10.500
Leaf width 188.400 14.100
Leaf length 210.500 18.100
Petiole length 136.100 17.900
Leaf length Including the petiole 291.600 27.900
Distance between the ends of veins N2 and N2' 172.200 12.100
Length of vein N1 155.500 11.700
Distance between the ends of veins N4 and N4' 107.700 16.400
Distance between the ends of veins N3 and N3' 186.500 14.900
Length of vein N2 130.100 7.700
Width of petiole sinus / Distance between points SP and SP' -32.600 8.500
Length of vein N3 93.200 7.000
Length of vein N2' 131.400 11.800
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 54.400 3.900
Length of vein N3' 94.600 10.200
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 55.400 8.700
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 52.300 5.100
Angle between N2 and N3 measured at the first bifurcation 47.300 7.200
Angle between N1 and N2' measured at the first bifurcation 49.700 4.500
Angle between N3 and N4 at the first fork of N3 50.500 6.600
Angle between N2 and N3' measured at the first bifurcation 44.800 6.000
Angle between N1 and N2 measured at the ends of the veins 41.000 4.400
Angle between N3' and N4' 56.000 9.500
Angle between N2 and N3 measured at the ends of the veins 47.100 6.900
Angle between N1' and N2' measured at the ends of the veins 41.500 4.900
Angle between N3 and N4 measured at the ends of the veins 44.700 6.600
Angle between N2' and N3' measured at the ends of the veins 43.600 6.800
Angle of opening of the petiole sinus measured at SP and at SP' 67.400 19.500
Angle between N3' and N4' measured at the ends of the veins 44.000 6.800
Angle between S and S' with the center in N1 45.400 10.500
Angle between D and D' with the center in N1 86.400 7.500
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 65.100 7.800
Angle between I and I' with the center in N1 50.500 5.900
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 65.100 10.700
rations
descriptor value standard deviation
Ratio between the height and the base of the tooth at the end of the vein N4' 0.834 0.206
Ratio between the height and the base of the tooth at the end of the vein N2' 1.437 0.700
Ratio between the height and the base of the tooth at the end of the vein N4 0.873 0.114
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.011 0.001
Ratio between the height and the base of the tooth at the end of the vein N2 1.217 0.342
Ratio between the length of the vein N5' and the length of the vein N1 0.180 0.038
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.013 0.003
Ratio between the length of the vein N4' and the length of the vein N1 0.373 0.050
Ratio between the length of the vein N5 and the length of the vein N1 0.193 0.027
Ratio between the length of the vein N3' and the length of the vein N1 0.608 0.032
Ratio between the length of the vein N4 and the length of the vein N1 0.408 0.035
Ratio between the length of the vein N2' and the length of the vein N1 0.846 0.053
Ratio between the length of the vein N3 and the length of the vein N1 0.600 0.038
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.748 0.085
Ratio between the length of the vein N2 and the length of the vein N1 0.838 0.053
Ratio between the distance from the sinus and the length of the vein N2' 0.586 0.096
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.726 0.116
Multiplication between length and width of the leaf 39853.000 6131.000
Ratio between the length of the petiole OP and the length of the vein N1 0.874 0.082
Ratio between length and width of the leaf 1.117 0.051
Ratio between the distance from the sinus and the length of the vein N2 0.562 0.106
