Nero di Spagna (Garf-GR) - 1181: ampelometry

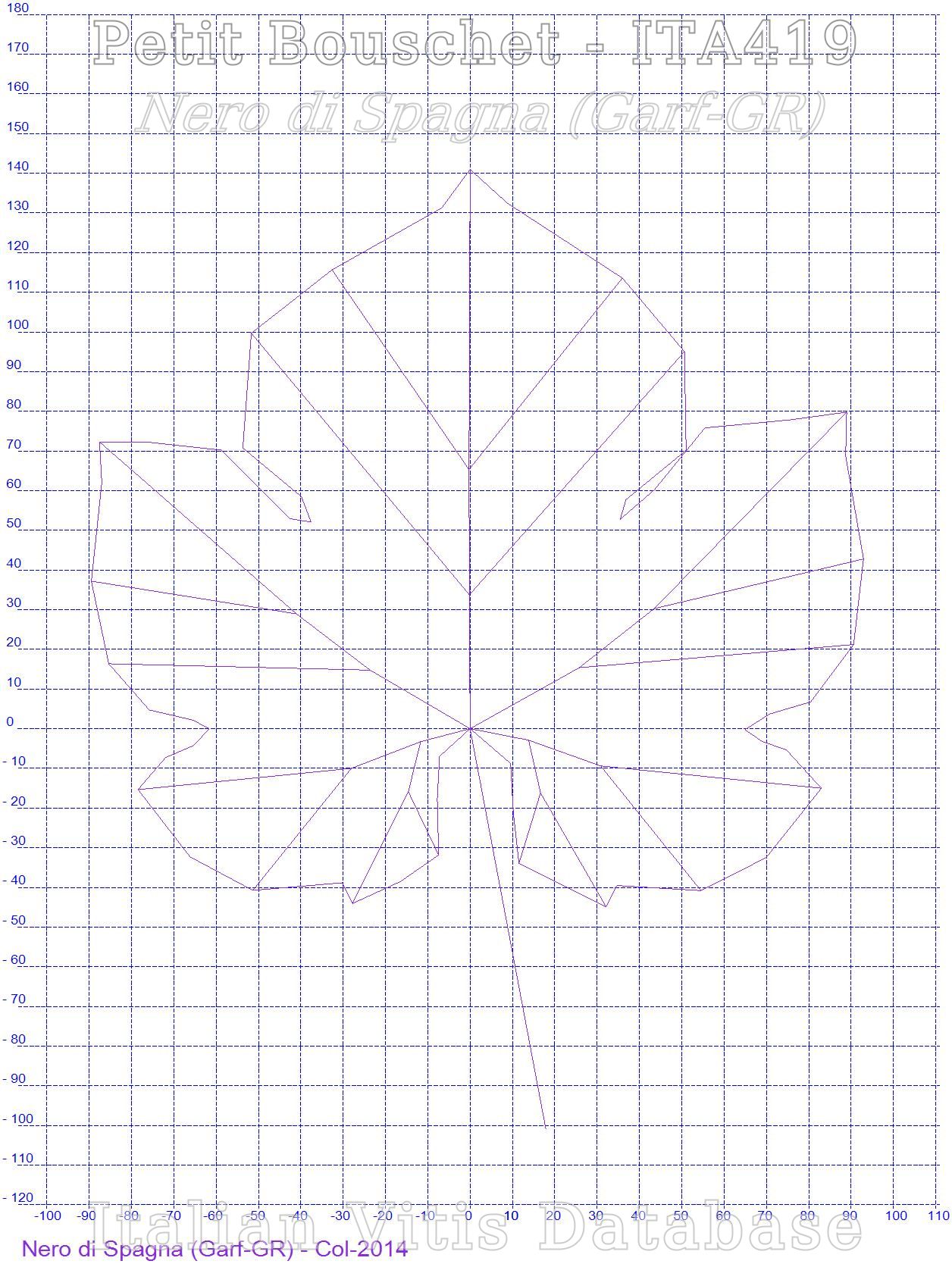

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 5 medium (135 mm)
602 PDF Mature leaf: length of vein N2 7 long (125 mm)
603 PDF Mature leaf: length of vein N3 5 medium (75 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 5 medium (70 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 5 medium (60 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 3 small (30°-45°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 7 large (56°-70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 7 large (56°-70°)
612 PDF Mature leaf: length of tooth N2 3 short (10 mm)
613 PDF Mature leaf: width of tooth N2 5 medium (14 mm)
614 PDF Mature leaf: length of tooth N4 1 very short (6 mm)
615 PDF Mature leaf: width of tooth N4 5 medium (14 mm)
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 7 long (56-70 mm)
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower right sinus 65.500 14.600
Distance from the petiole sinus to the lower left sinus 61.700 12.200
Distance from the petiole sinus to the upper right sinus 63.800 14.400
Distance from the petiole sinus to the upper left sinus 64.300 12.400
Vein N3, length from the petiole sinus to vein N4 14.300 4.900
Vein N3', length from the petiole sinus to vein N4' 12.400 3.100
Length of vein N5 19.300 5.400
Length of vein N5' 17.800 4.500
Length of vein N4 46.600 6.400
Length of vein N4' 44.400 4.500
Distance between petiole point and end of vein N4 55.900 5.900
Distance between petiole point and end of vein N4' 52.600 3.500
Leaf width 180.200 18.200
Leaf length 189.000 21.400
Petiole length 103.200 16.900
Leaf length Including the petiole 244.200 31.800
Distance between the ends of veins N2 and N2' 177.100 20.500
Length of vein N1 141.000 16.800
Distance between the ends of veins N4 and N4' 60.500 10.000
Distance between the ends of veins N3 and N3' 161.900 11.400
Length of vein N2 120.100 13.600
Width of petiole sinus / Distance between points SP and SP' -19.200 5.500
Length of vein N3 85.500 9.300
Length of vein N2' 113.900 9.200
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 63.400 18.700
Length of vein N3' 80.400 5.500
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 70.700 9.200
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 59.000 3.900
Angle between N2 and N3 measured at the first bifurcation 41.800 4.700
Angle between N1 and N2' measured at the first bifurcation 57.500 4.600
Angle between N3 and N4 at the first fork of N3 56.400 4.700
Angle between N2 and N3' measured at the first bifurcation 46.300 8.600
Angle between N1 and N2 measured at the ends of the veins 47.700 6.500
Angle between N3' and N4' 54.800 7.900
Angle between N2 and N3 measured at the ends of the veins 52.200 5.900
Angle between N1' and N2' measured at the ends of the veins 50.500 4.800
Angle between N3 and N4 measured at the ends of the veins 44.400 4.500
Angle between N2' and N3' measured at the ends of the veins 50.500 6.300
Angle of opening of the petiole sinus measured at SP and at SP' 50.200 12.300
Angle between N3' and N4' measured at the ends of the veins 46.800 4.700
Angle between S and S' with the center in N1 46.700 14.500
Angle between D and D' with the center in N1 99.900 8.900
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 60.900 14.400
Angle between I and I' with the center in N1 48.600 9.800
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 66.000 11.700
rations
descriptor value standard deviation
Ratio between the height and the base of the tooth at the end of the vein N4' 0.416 0.122
Ratio between the height and the base of the tooth at the end of the vein N2' 0.757 0.656
Ratio between the height and the base of the tooth at the end of the vein N4 0.465 0.124
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.015 0.003
Ratio between the height and the base of the tooth at the end of the vein N2 0.575 0.120
Ratio between the length of the vein N5' and the length of the vein N1 0.127 0.030
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.014 0.003
Ratio between the length of the vein N4' and the length of the vein N1 0.318 0.046
Ratio between the length of the vein N5 and the length of the vein N1 0.139 0.041
Ratio between the length of the vein N3' and the length of the vein N1 0.570 0.068
Ratio between the length of the vein N4 and the length of the vein N1 0.334 0.051
Ratio between the length of the vein N2' and the length of the vein N1 0.816 0.104
Ratio between the length of the vein N3 and the length of the vein N1 0.609 0.048
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.769 0.146
Ratio between the length of the vein N2 and the length of the vein N1 0.854 0.045
Ratio between the distance from the sinus and the length of the vein N2' 0.565 0.103
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.764 0.135
Multiplication between length and width of the leaf 34318.000 6972.000
Ratio between the length of the petiole OP and the length of the vein N1 0.732 0.075
Ratio between length and width of the leaf 1.051 0.086
Ratio between the distance from the sinus and the length of the vein N2 0.533 0.118
