Primitivo: ampelometry

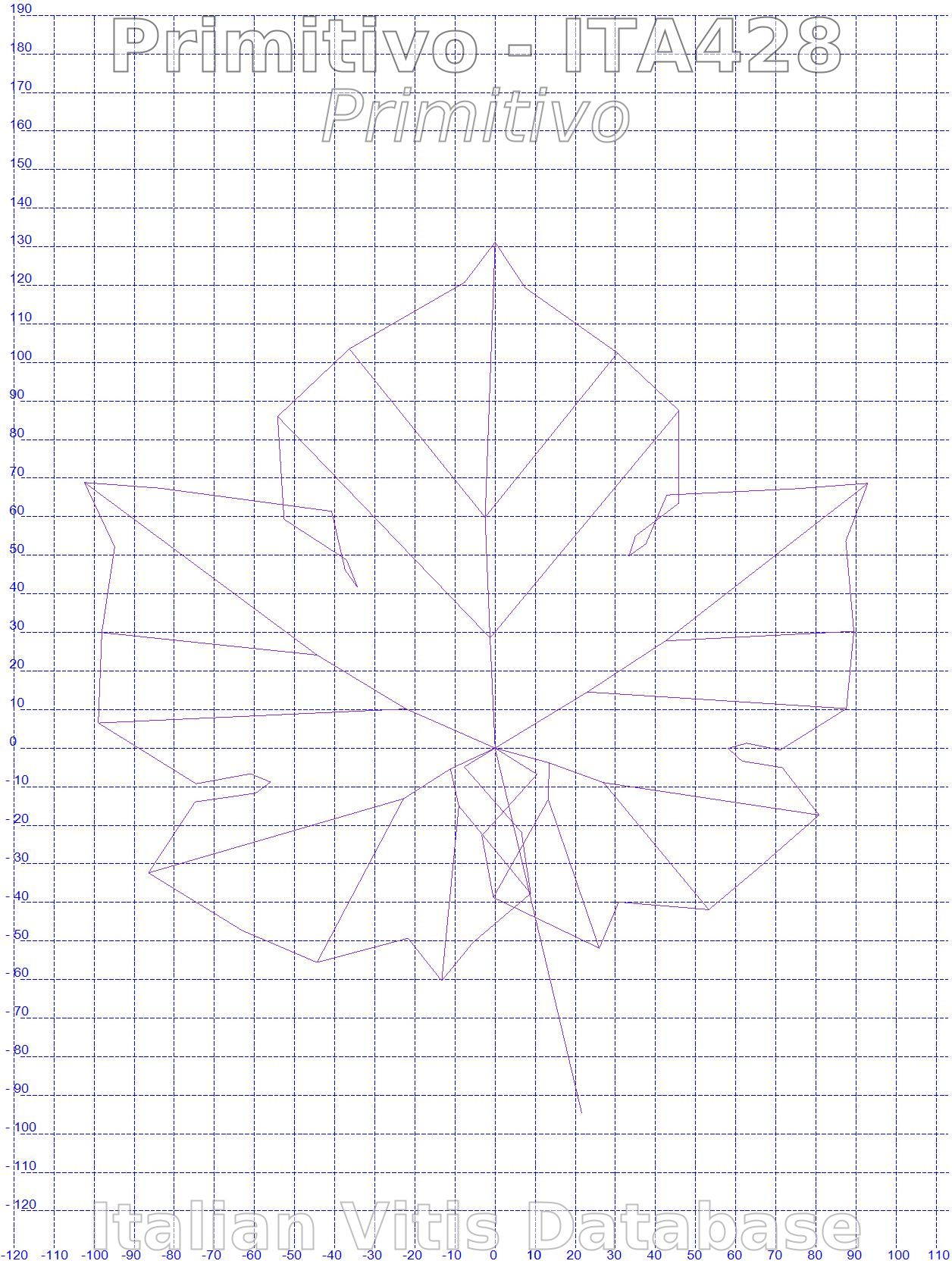

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 5 medium (135 mm)
602 PDF Mature leaf: length of vein N2 7 long (125 mm)
603 PDF Mature leaf: length of vein N3 7 long (95 mm)
604 PDF Mature leaf: length of vein N4 9 very long (55 mm and over)
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus 3 short (50 mm)
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus 5 medium (60 mm)
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification 7 large (56°-70°)
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification 5 medium (46°-55°)
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification 9 very large (> 70°)
610 PDF Mature leaf: angle between N3 and the tangent between petiole point 9 very large (> 70°)
612 PDF Mature leaf: length of tooth N2 5 medium (14 mm)
613 PDF Mature leaf: width of tooth N2 7 wide (18 mm)
614 PDF Mature leaf: length of tooth N4 3 short (10 mm)
615 PDF Mature leaf: width of tooth N4 7 wide (18 mm)
616 PDF Mature leaf: number of teeth between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 including the limits 3 small (about 4)
superampelo
distances
descriptor value standard deviation
Height of the tooth on the end of N4 9.442 3.978
Height of the tooth on the end of N4' 12.392 5.047
Base of the tooth located at the end of N4 16.933 8.247
Base of the tooth located at the end of N2' 19.225 3.390
Base of the tooth located at the end of N4' 17.358 3.156
Distance from the petiole sinus to the lower right sinus 58.883 10.036
Distance from the petiole sinus to the upper left sinus 54.350 12.190
Base of the tooth located at the end of N2 18.817 1.959
Distance from the petiole sinus to the lower left sinus 57.858 9.886
Vein N3, length from the petiole sinus to vein N4 14.167 2.340
Length of vein N5' 29.842 4.314
Distance from the petiole sinus to the upper right sinus 60.325 14.718
Vein N3', length from the petiole sinus to vein N4' 12.625 3.612
Length of vein N4 51.708 6.059
Distance between petiole point and end of vein N4' 63.567 8.492
Length of vein N5 30.600 4.108
Length of vein N4' 56.542 7.770
Leaf width 200.292 16.948
Leaf length Including the petiole 229.075 14.849
Distance between petiole point and end of vein N4 59.825 5.945
Leaf length 194.392 8.647
Distance between the ends of veins N2 and N2' 196.233 21.045
Distance between the ends of veins N3 and N3' 170.342 15.497
Petiole length 97.875 10.635
Length of vein N1 131.183 6.184
Length of vein N2 116.375 6.570
Length of vein N2' 125.119 9.462
Distance between the ends of veins N4 and N4' 42.092 23.652
Width of petiole sinus / Distance between points SP and SP' -14.917 8.359
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 71.400 17.281
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 78.100 27.644
Length of vein N3 83.742 9.561
Length of vein N3' 94.683 8.941
Height of the tooth on the end of N2 14.300 2.356
Altezza del dente posto all’estremità di N2' 16.158 2.148
angles
descriptor value standard deviation
Sum of the angles alpha' + beta' + gamma' 184.058 14.950
Sum of the angles alpha + beta + gamma 179.308 15.373
Sum of the angles alpha' + beta' 114.242 8.543
Sum of the angles alpha + beta 107.708 7.064
Angle between N2 and N3 measured at the first bifurcation 47.742 6.580
Angle between N2 and N3' measured at the first bifurcation 51.908 6.921
Angle between N1 and N2 measured at the first bifurcation 59.975 5.228
Angle between N1 and N2' measured at the first bifurcation 62.342 6.019
Angle between N1 and N2 measured at the ends of the veins 53.283 7.100
Angle between N1' and N2' measured at the ends of the veins 55.567 10.200
Angle between N3 and N4 at the first fork of N3 71.567 14.191
Angle between N3' and N4' 69.808 13.122
Angle between N3 and N4 measured at the ends of the veins 51.567 11.383
Angle between N3' and N4' measured at the ends of the veins 58.008 6.408
Angle between N2 and N3 measured at the ends of the veins 48.708 6.503
Angle between N2' and N3' measured at the ends of the veins 54.358 6.987
Angle between S and S' with the center in N1 44.225 14.203
Angle between I and I' with the center in N1 45.542 4.819
Angle of opening of the petiole sinus measured at SP and at SP' 30.300 24.805
Angle between D and D' with the center in N1 96.600 9.685
Angle between N2 and N3 measured at the petiole point and between N2 and N3 tooth tip 79.275 15.975
Angle between N2 and N3 measured at the petiole point and between N2' and N3' tooth tip 84.258 11.015
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 12.298 1.429
Media height of the teeth of the left side 11.354 1.554
Ratio between the height and the base of the tooth at the end of the vein N4' 0.723 0.271
Ratio between the height and the base of the tooth at the end of the vein N4 0.638 0.245
Media of the base of the teeth of the right side 11.188 2.851
Media height of the teeth of the right side 10.842 1.921
Ratio between the height and the base of the teeth of the left side 0.926 0.103
Ratio between the height and the base of the teeth of the right side 1.036 0.329
Ratio between the height and the base of the tooth at the end of the vein N2' 0.854 0.131
Ratio between the height and the base of the tooth at the end of the vein N2 0.767 0.149
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.018 0.003
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.016 0.004
Ratio between the length of the vein N5' and the length of the vein N1 0.228 0.034
Ratio between the length of the vein N5 and the length of the vein N1 0.234 0.033
Ratio between the length of the vein N3' and the length of the vein N1 0.722 0.057
Ratio between the length of the vein N3 and the length of the vein N1 0.638 0.068
Ratio between the length of the vein N4' and the length of the vein N1 0.432 0.061
Ratio between the length of the vein N4 and the length of the vein N1 0.394 0.040
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.612 0.090
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.709 0.127
Ratio between the length of the vein N2' and the length of the vein N1 0.954 0.061
Ratio between the length of the vein N2 and the length of the vein N1 0.889 0.066
Ratio between the length of the petiole OP and the length of the vein N1 0.746 0.070
Ratio between length and width of the leaf 0.975 0.063
Ratio between the distance from the sinus and the length of the vein N2' 0.435 0.095
Ratio between the distance from the sinus and the length of the vein N2 0.517 0.115
Multiplication between length and width of the leaf 39016.120 4609.058
