Arneis: ampelometry

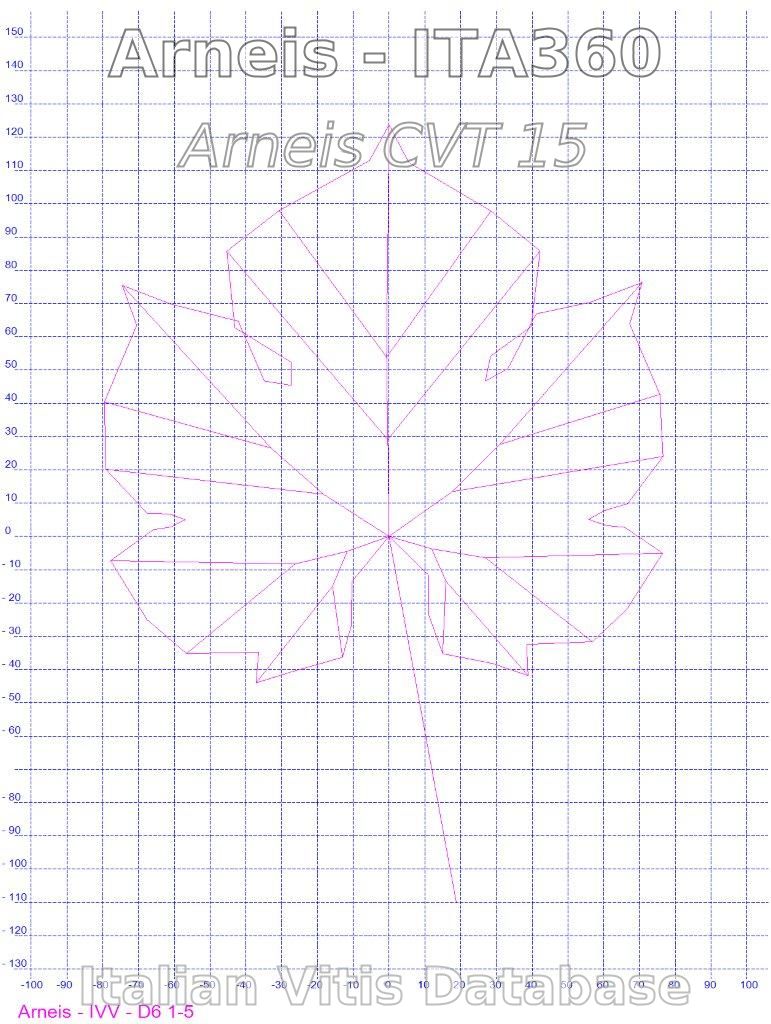

ampelometric leaf
ampelometric leaf
OIV
OIV PDF description value
601 PDF Mature leaf: length of vein N1 ( 123.30 )
602 PDF Mature leaf: length of vein N2 ( 106.00 )
603 PDF Mature leaf: length of vein N3 ( 78.30 )
604 PDF Mature leaf: length of vein N4 ( 57.60 )
605 PDF Mature leaf: length petiole sinus to upper lateral leaf sinus ( 53.10 )
606 PDF Mature leaf: length petiole sinus to lower lateral leaf sinus ( 57.40 )
607 PDF Mature leaf: angle between N1 and N2 measured at the first ramification ( 53.80 )
608 PDF Mature leaf: angle between N2 and N3 measured at the first ramification ( 53.90 )
609 PDF Mature leaf: angle between N3 and N41) measured at the first ramification ( 56.30 )
610 PDF Mature leaf: angle between N3 and the tangent between petiole point ( 50.30 )
611 PDF Mature leaf: length of vein N5 ( 22.20 )
612 PDF Mature leaf: length of tooth N2
613 PDF Mature leaf: width of tooth N2
614 PDF Mature leaf: length of tooth N4
615 PDF Mature leaf: width of tooth N4
616 PDF Mature leaf: number of teeth between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 including the limits
617 PDF Mature leaf: length between the tooth tip of N2 and the tooth tip of the first secondary vein of N2 ( 49.00 )
618 PDF Mature leaf: opening/overlapping of petiole sinus ( -21.30 )
superampelo
distances
descriptor value standard deviation
Distance from the petiole sinus to the lower left sinus 57.200 11.500
Distance from the petiole sinus to the lower right sinus 57.700 7.600
Distance from the petiole sinus to the upper left sinus 52.700 11.200
Distance from the petiole sinus to the upper right sinus 53.400 10.500
Vein N3', length from the petiole sinus to vein N4' 12.300 3.300
Vein N3, length from the petiole sinus to vein N4 12.300 2.600
Length of vein N5' 22.300 4.500
Length of vein N5 22.100 5.000
Length of vein N4' 47.500 6.900
Length of vein N4 47.400 6.300
Distance between petiole point and end of vein N4' 57.700 8.400
Distance between petiole point and end of vein N4 57.500 6.400
Leaf length 169.000 23.200
Leaf width 158.600 19.800
Leaf length Including the petiole 237.300 22.200
Petiole length 114.000 12.100
Length of vein N1 123.300 17.100
Distance between the ends of veins N2 and N2' 146.000 20.500
Distance between the ends of veins N3 and N3' 155.500 19.600
Distance between the ends of veins N4 and N4' 76.100 9.700
Width of petiole sinus / Distance between points SP and SP' -21.300 7.100
Length of vein N2 105.200 10.700
Length of vein N2' 106.800 13.600
Length of vein N3 77.900 9.100
Length of vein N3' 78.800 12.200
Distance between the tooth tip of N2 and the tooth tip of the first ramification (secondary vein) of N2 48.400 9.700
Distance between the tooth tip of N2' and the tooth tip of the first ramification (secondary vein) of N2' 49.600 11.300
angles
descriptor value standard deviation
Angle between N1 and N2 measured at the first bifurcation 53.500 4.000
Angle between N1 and N2' measured at the first bifurcation 54.100 2.300
Angle between N2 and N3 measured at the first bifurcation 53.200 4.100
Angle between N2 and N3' measured at the first bifurcation 54.500 5.900
Angle between N3 and N4 at the first fork of N3 57.900 5.800
Angle between N3' and N4' 54.600 4.300
Angle between N1 and N2 measured at the ends of the veins 43.100 5.400
Angle between N1' and N2' measured at the ends of the veins 43.800 6.500
Angle between N2 and N3 measured at the ends of the veins 50.500 5.200
Angle between N2' and N3' measured at the ends of the veins 50.000 4.100
Angle between N3 and N4 measured at the ends of the veins 43.800 4.100
Angle between N3' and N4' measured at the ends of the veins 45.300 5.400
Angle of opening of the petiole sinus measured at SP and at SP' 45.700 17.700
Angle between D and D' with the center in N1 98.200 6.200
Angle between S and S' with the center in N1 39.000 12.800
Angle between I and I' with the center in N1 51.900 6.200
rations
descriptor value standard deviation
Media of the base of the teeth of the left side 8.760 1.490
Media height of the teeth of the left side 8.710 1.250
Media of the base of the teeth of the right side 9.100 1.370
Media height of the teeth of the right side 8.570 1.370
Ratio between the height and the base of the tooth at the end of the vein N4' 0.720 0.150
Ratio between the height and the base of the tooth at the end of the vein N4 0.730 0.070
Ratio between the height and the base of the tooth at the end of the vein N2' 1.080 0.130
Ratio between the height and the base of the tooth at the end of the vein N2 1.000 0.130
Ratio between the height and the base of the teeth of the left side 1.000 0.110
Ratio between the height and the base of the teeth of the right side 0.950 0.110
Ratio between the sum of the angles a' + b' and the sum of the distance between the petiole sinus and upper right sinus OS' and the petiole sinus and lower right lower right sinus OI' 0.020 0.000
Ratio between the sum of the angles a + b and the sum of the distance between the petiole sinus and upper right sinus OS and the petiole sinus and lower right lower right sinus OI 0.020 0.000
Ratio between the length of the vein N5' and the length of the vein N1 0.180 0.030
Ratio between the length of the vein N5 and the length of the vein N1 0.180 0.030
Ratio between the length of the vein N4' and the length of the vein N1 0.390 0.020
Ratio between the length of the vein N4 and the length of the vein N1 0.390 0.050
Ratio between the length of the vein N3' and the length of the vein N1 0.640 0.050
Ratio between the length of the vein N3 and the length of the vein N1 0.640 0.070
Ratio between the length of the vein N2' and the length of the vein N1 0.870 0.050
Ratio between the length of the vein N2 and the length of the vein N1 0.860 0.070
Ratio between length and width of the leaf 1.070 0.050
Ratio between the length of the petiole OP and the length of the vein N1 0.940 0.160
Ratio between the distance from the sinus and the length of the vein N2 0.510 0.110
Ratio between the distance from the sinus and the length of the vein N2' 0.490 0.090
Ratio between the distance from the petiole sinus to the lower right sinus OI and the length of vein N3 0.750 0.090
Ratio between the distance from the petiole sinus to the lower left sinus OI' and the length of vein N3' 0.730 0.110
